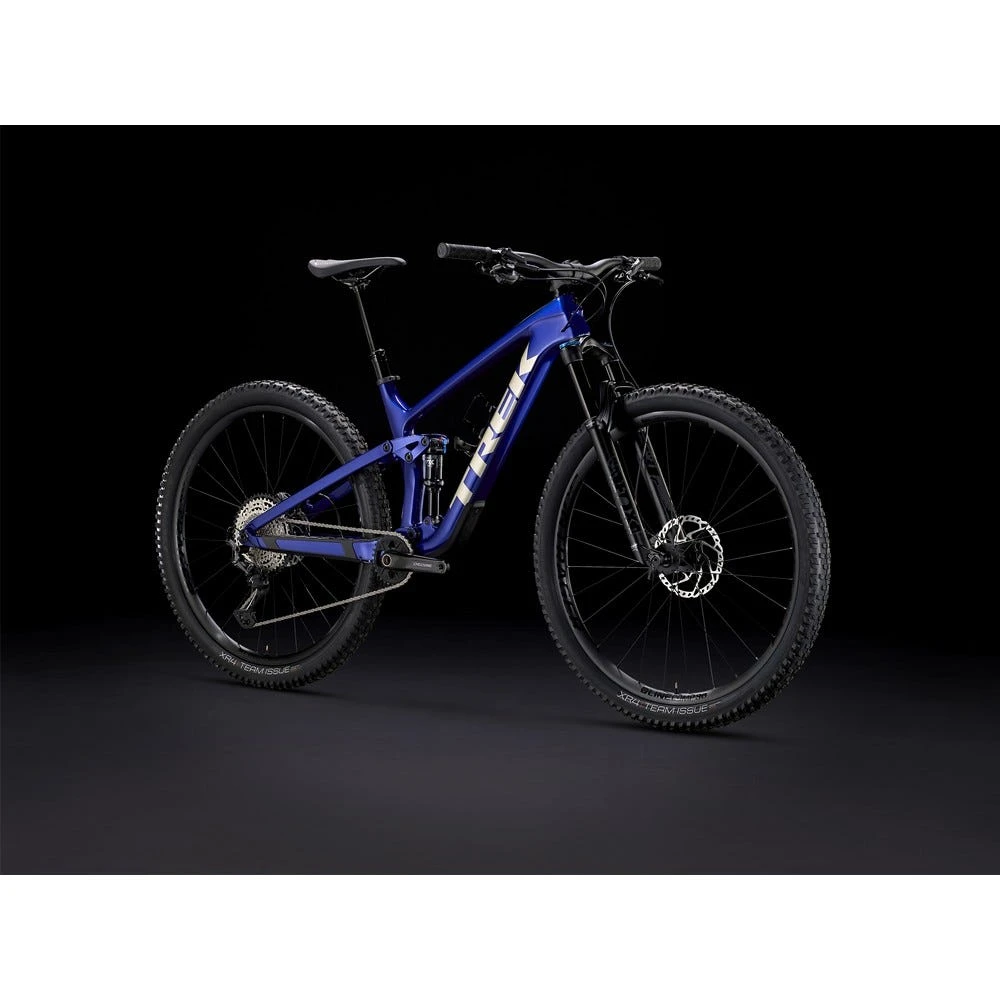

Trek Top Fuel 9.7 Mountain Bike

Trek Top Fuel 9.7 Mountain Bike

Specifications:

• Frame: OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
• Fork: Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 120 mm travel
• Rear shock : Fox Performance Float DPS, 3-position damper, 185 x 50 mm
• Max compatible fork travel: 130mm (541 mm axle-to-crown distance)
• Front wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Rear wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
• Tires: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.4″ (27.5 x 2.4” for size XS)
• Tire sealant: Bontrager TLR sealant, 180 ml
• Rim strip: Bontrager TLR
• Max rear tire size: 29 x 2.5″ (XS – 27.5 x 2.5″)
• Shifter: Shimano XT M8100, 12-speed
• Rear derailleur: Shimano XT M8100, long cage, 51T max cog

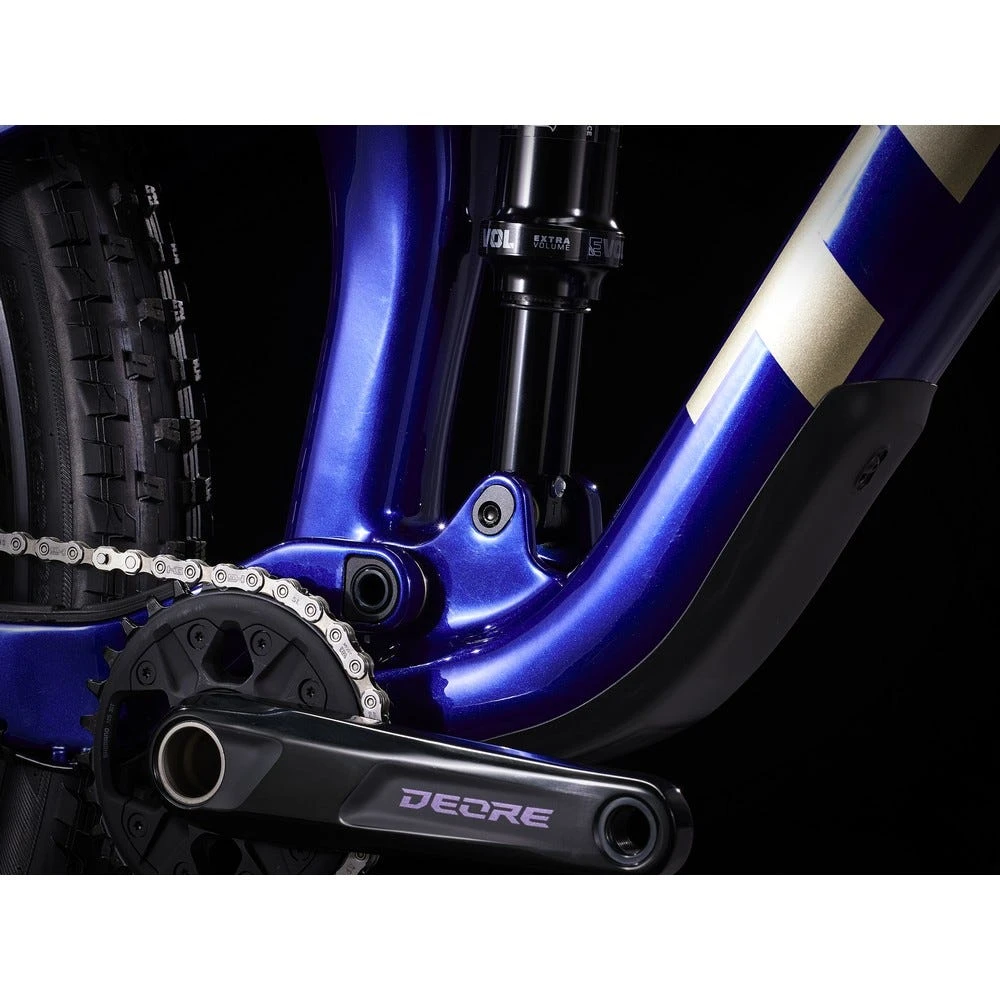

• Crank: Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length (175 mm for size XL)
• Bottom bracket: Shimano BB-MT501 BSA or Shimano SM-BB52, 73mm, threaded external bearing
• Cassette: Shimano SLX M7100, 10-51, 12-speed
• Chain: Shimano SLX M7100, 12-speed
• Max chainring size: 36T (oval – 34T) Min: 28T
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: TranzX JD-YSP39, internal routing, 34.9 mm, 100 to 170 mm travel depending on frame size
• Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width (750 mm for size XS and S)
• Grips: Bontrager XR Trail Comp, nylon lock-on

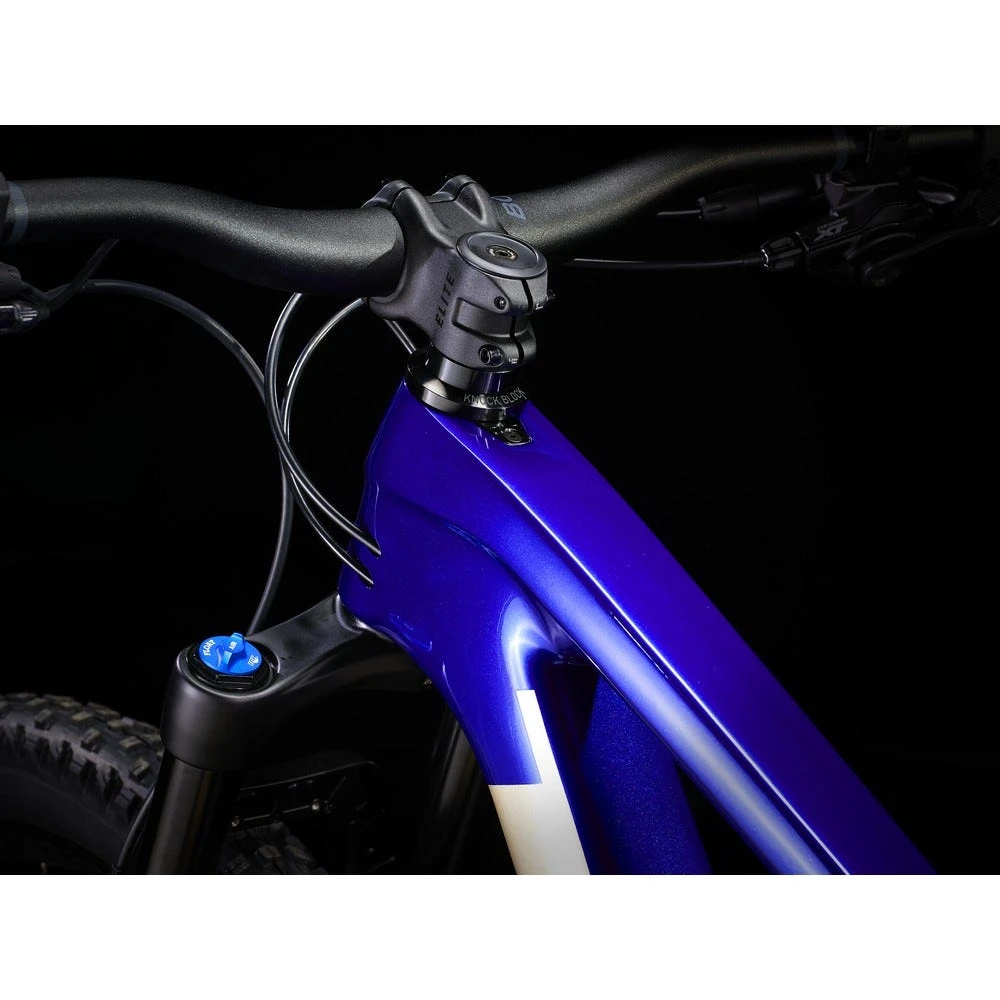

• Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
• Headset: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom

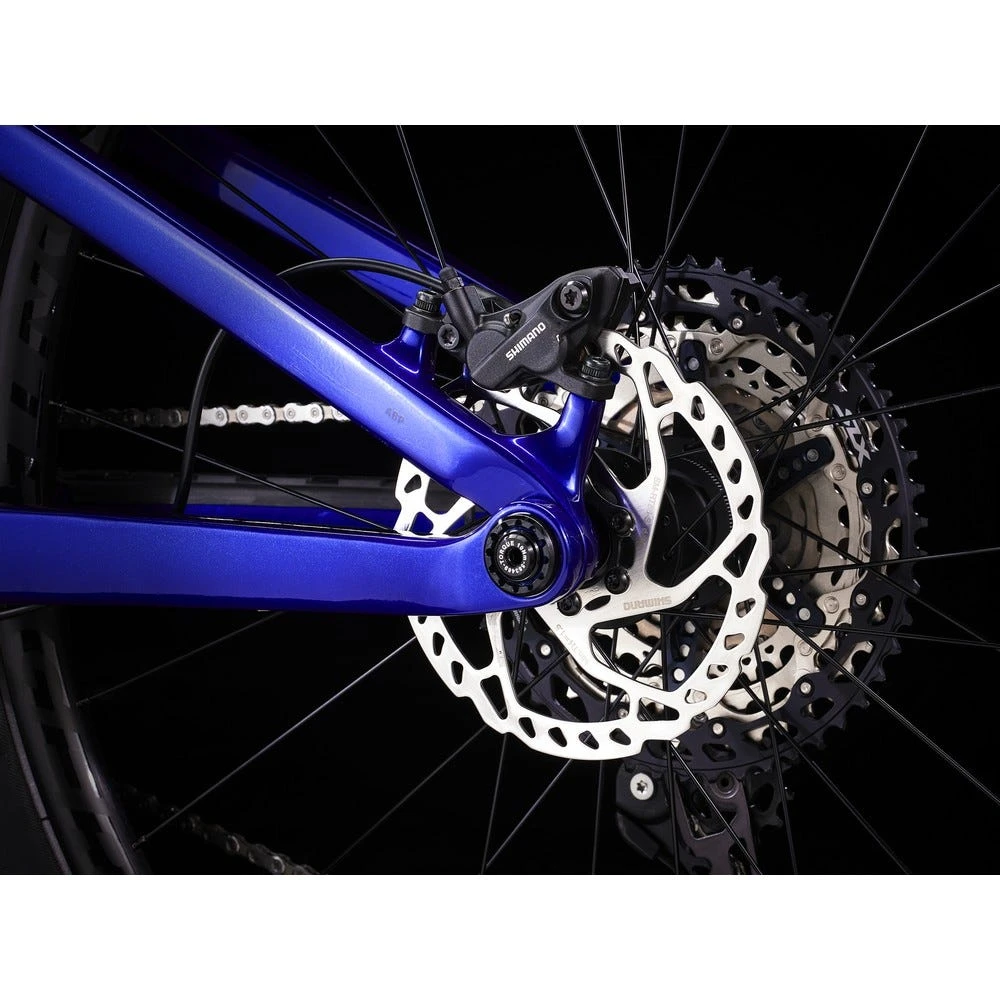

• Brakes: Shimano M6120 4-piston hydraulic with Shimano RT66, 6-bolt, 160/180 mm discs

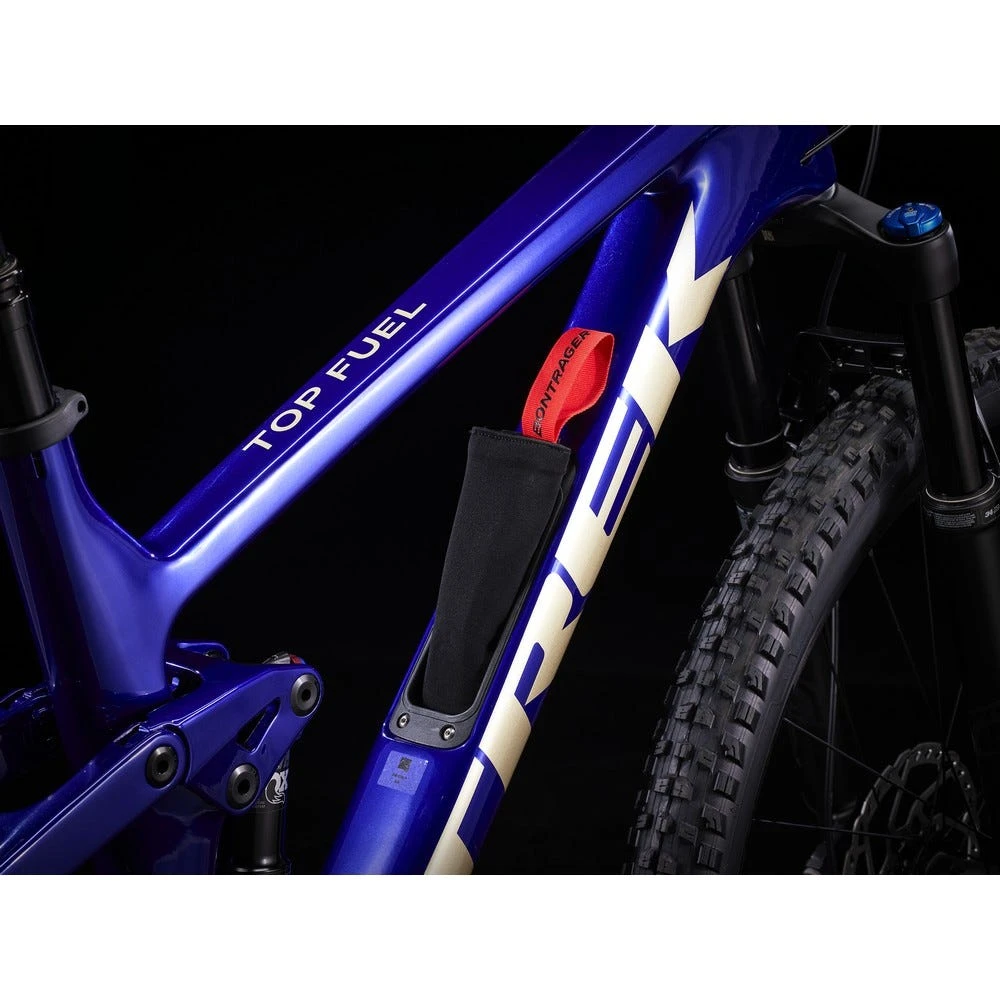

• Downtube bag: Bontrager BITS Internal Frame Storage Bag

Due to supply chain issues with certain bike suppliers, compatible components may be substituted at any time without notice.
