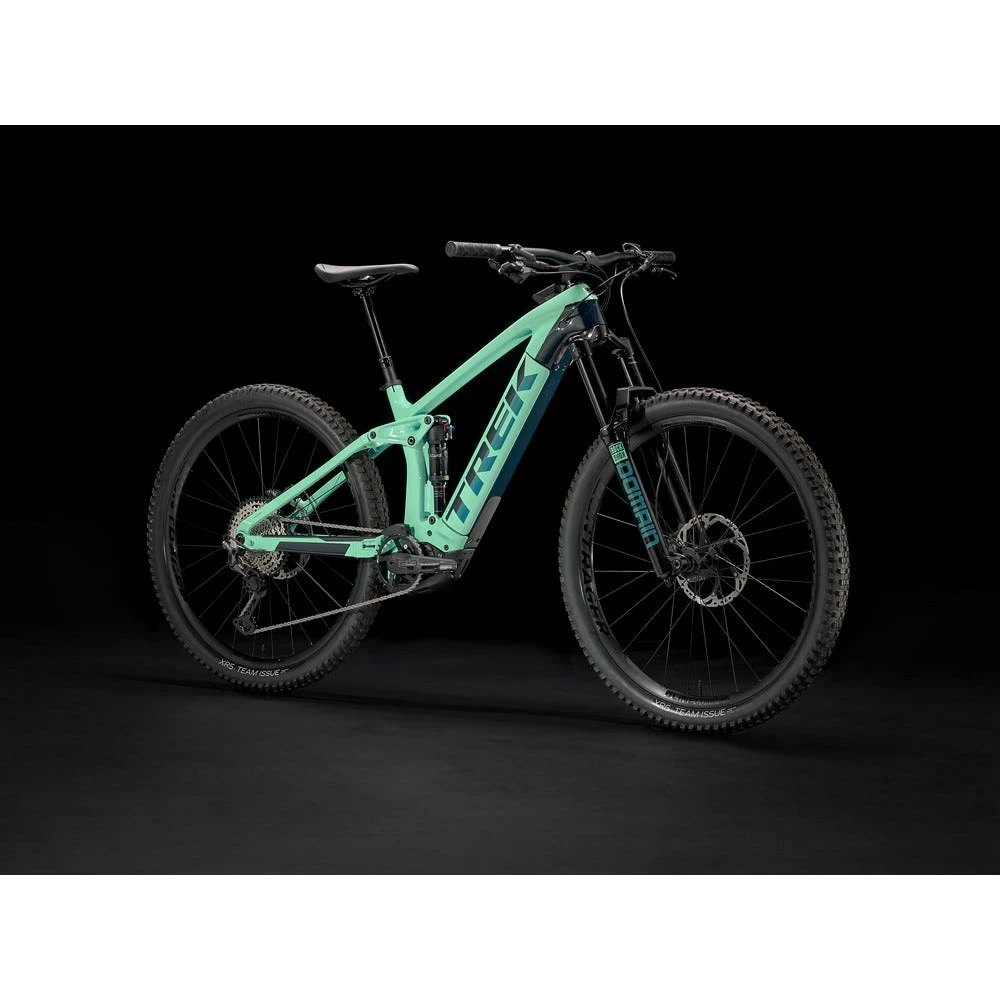

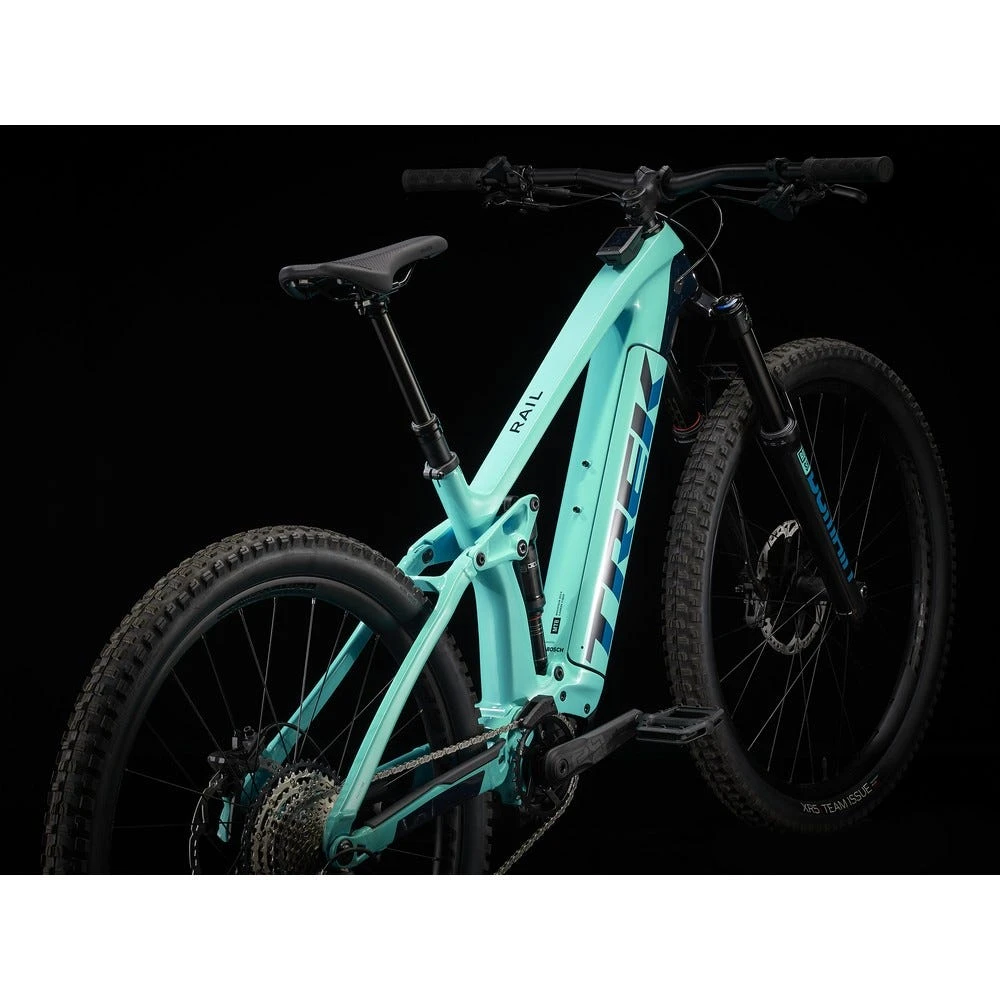

Trek Rail 9.7 Gen 2 Electric Mountain Bike

Trek Rail 9.7 Gen 2 Electric Mountain Bike

Specifications:

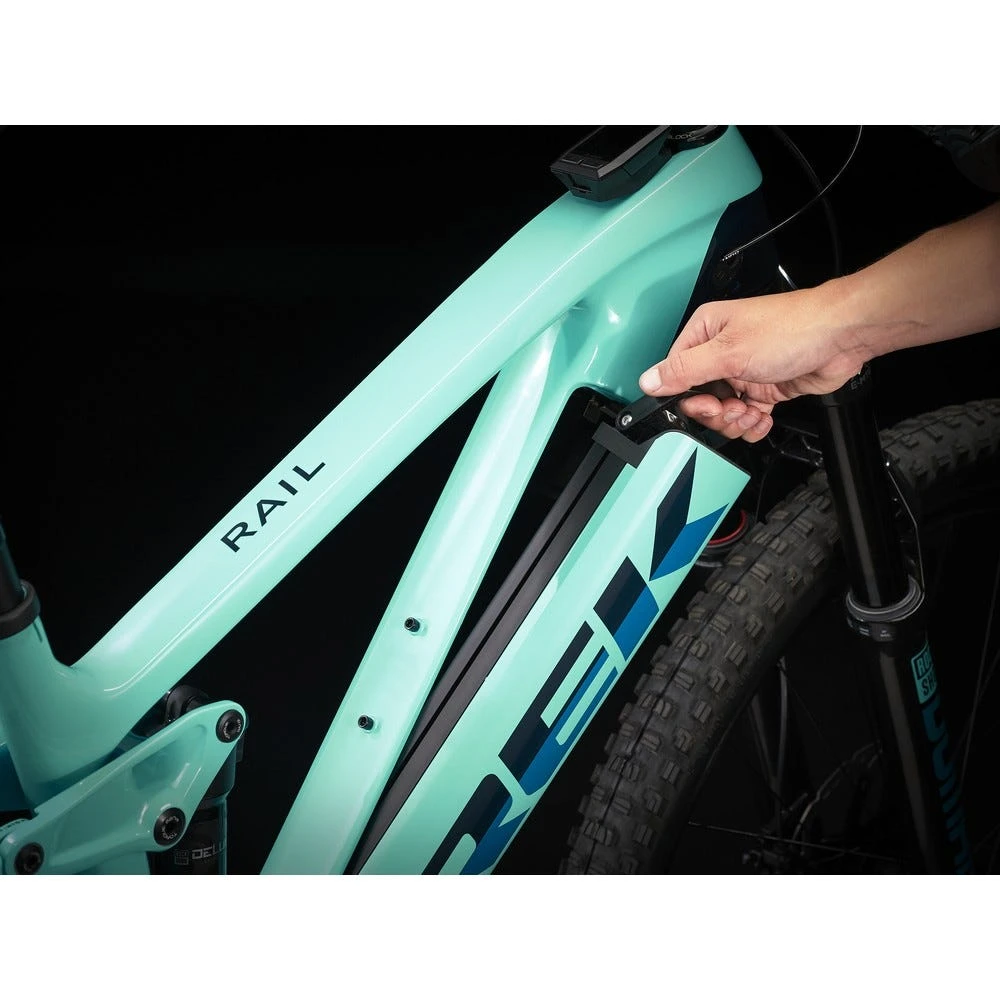

• Frame: OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
• Fork: RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

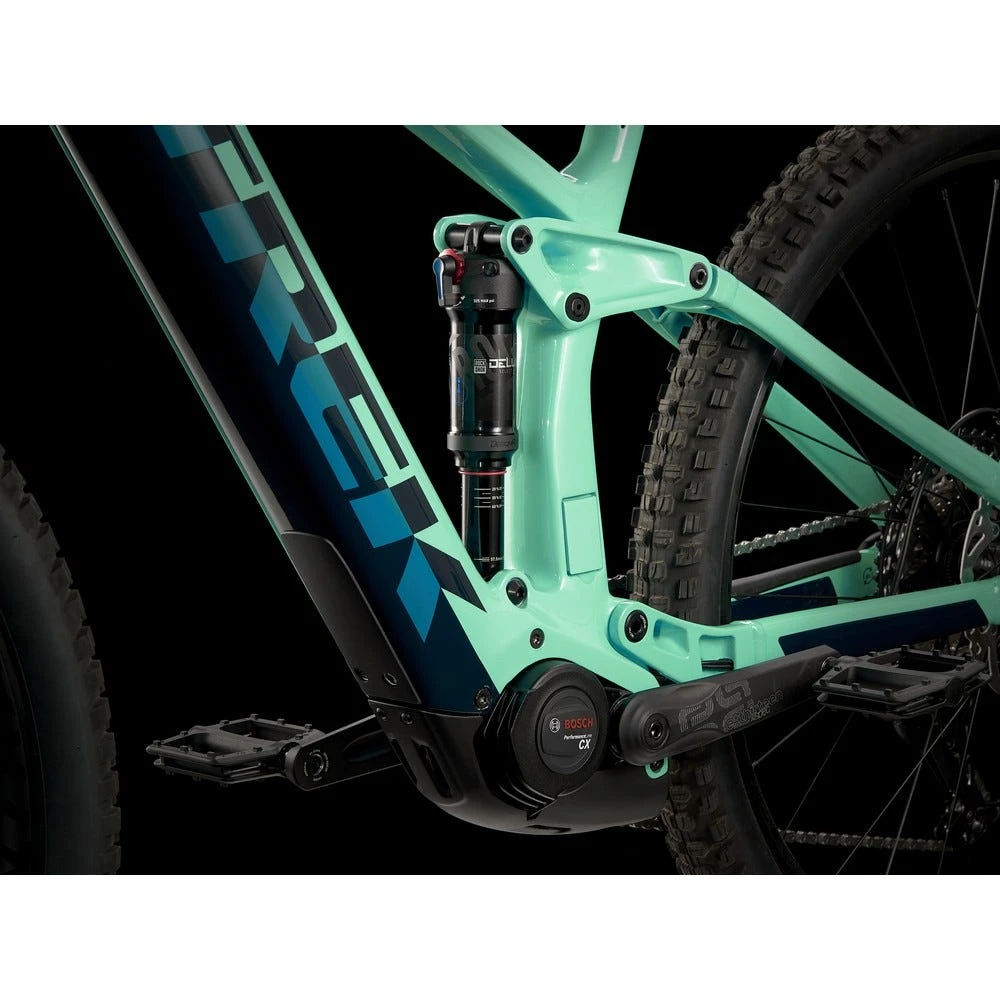

• Shock: RockShox Deluxe Select+, 230×57.5mm
• Max compatible fork travel: 170mm (580mm axle-to-crown)
• Front wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Rear wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
• Tires: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50″
• Tire sealant: Bontrager TLR sealant, 180 ml
• Rim strip: Bontrager TLR
• Max rear tire size: 29 x 2.60″
• Shifter: Shimano SLX M7100, 12-speed
• Rear derailleur: Shimano XT M8100, long cage, 51T max cog
• Crank: E*thirteen E*spec Plus, 165 mm length
• Chain ring: E*thirteen, 34T, steel
• Cassette: Shimano SLX M7100, 10-51, 12 speed
• Chain: Shimano SLX M7100, 12 speed
• Pedals: VP-536 nylon platform
• Max chainring size: 34T
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length, size SMALL has 100 mm travel, internal routing, 31.6 mm, 345 mm length
• Handlebar: Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
• Headset: Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8″ top, 1.5″ bottom
• Brakes: Shimano M6120 4-piston hydraulic disc with Shimano RT76, 6-bolt, 203 mm rotors
• Battery: Bosch PowerTube 625
• Charger: Bosch standard 4A (100-240V) charger

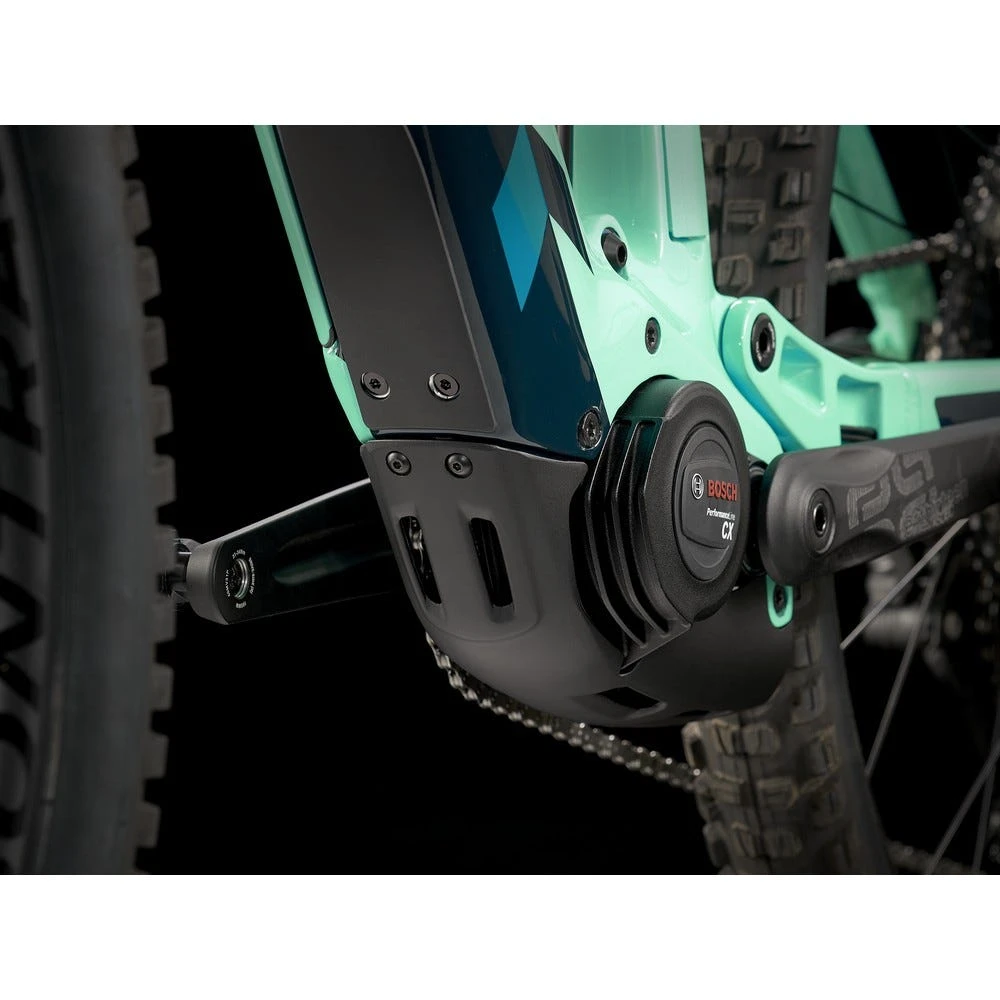

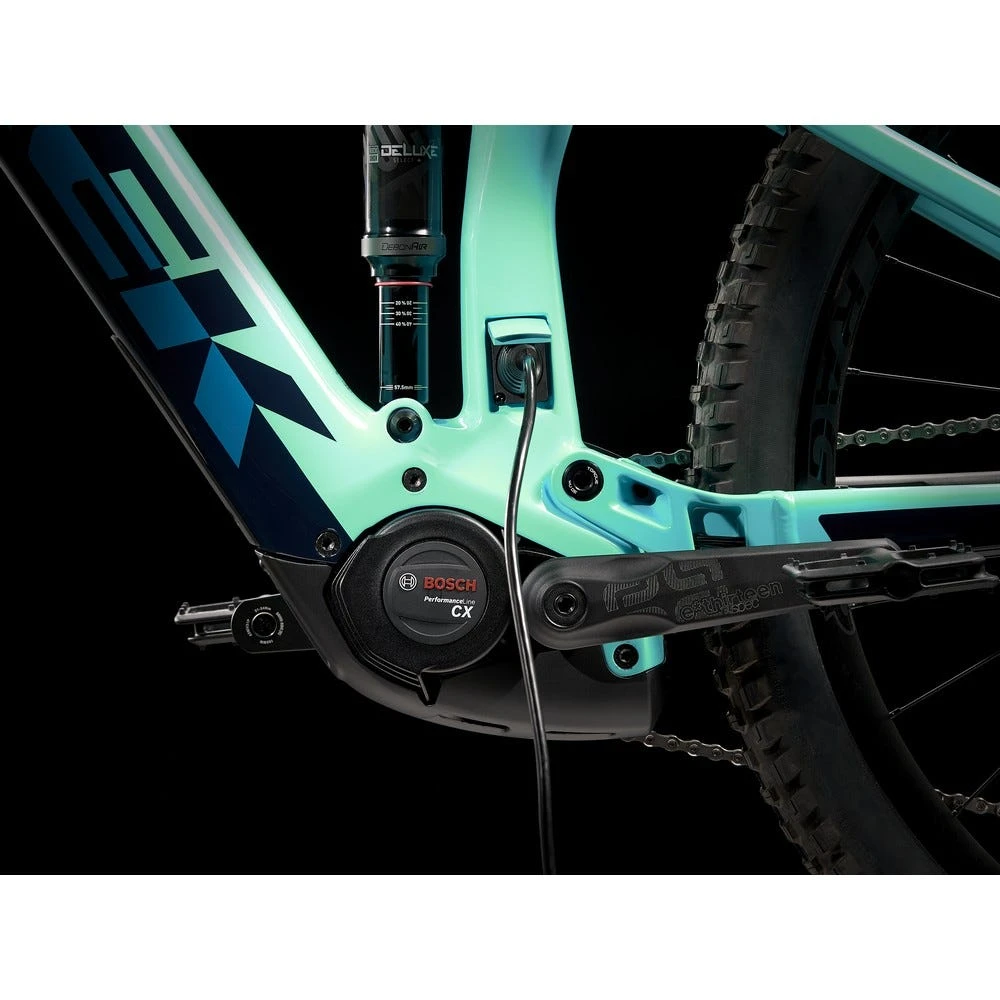

• Motor: Bosch Performance Line CX, magnesium motor body, 85 Nm, 20mph or 32km/h max assist

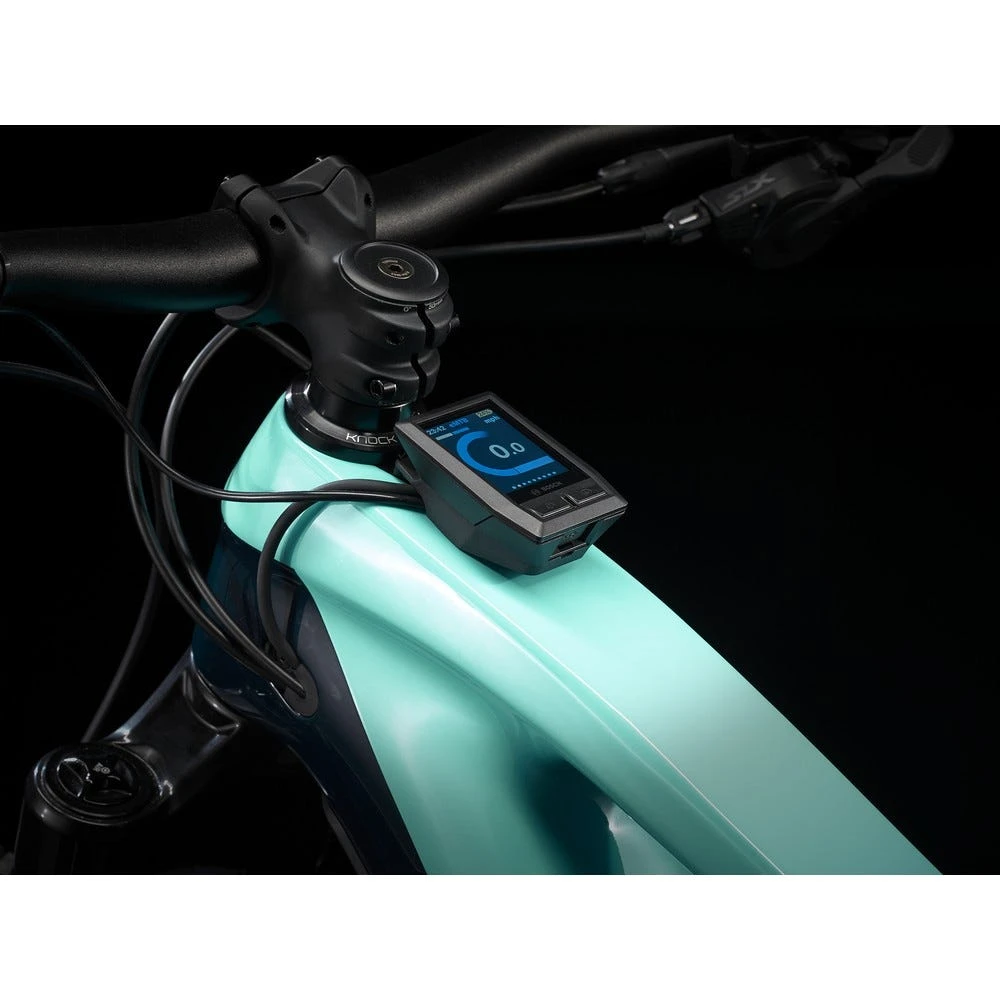

• Computer: Bosch Kiox with Anti-theft solution

Due to supply chain issues with certain bike suppliers, compatible components may be substituted at any time without notice.
