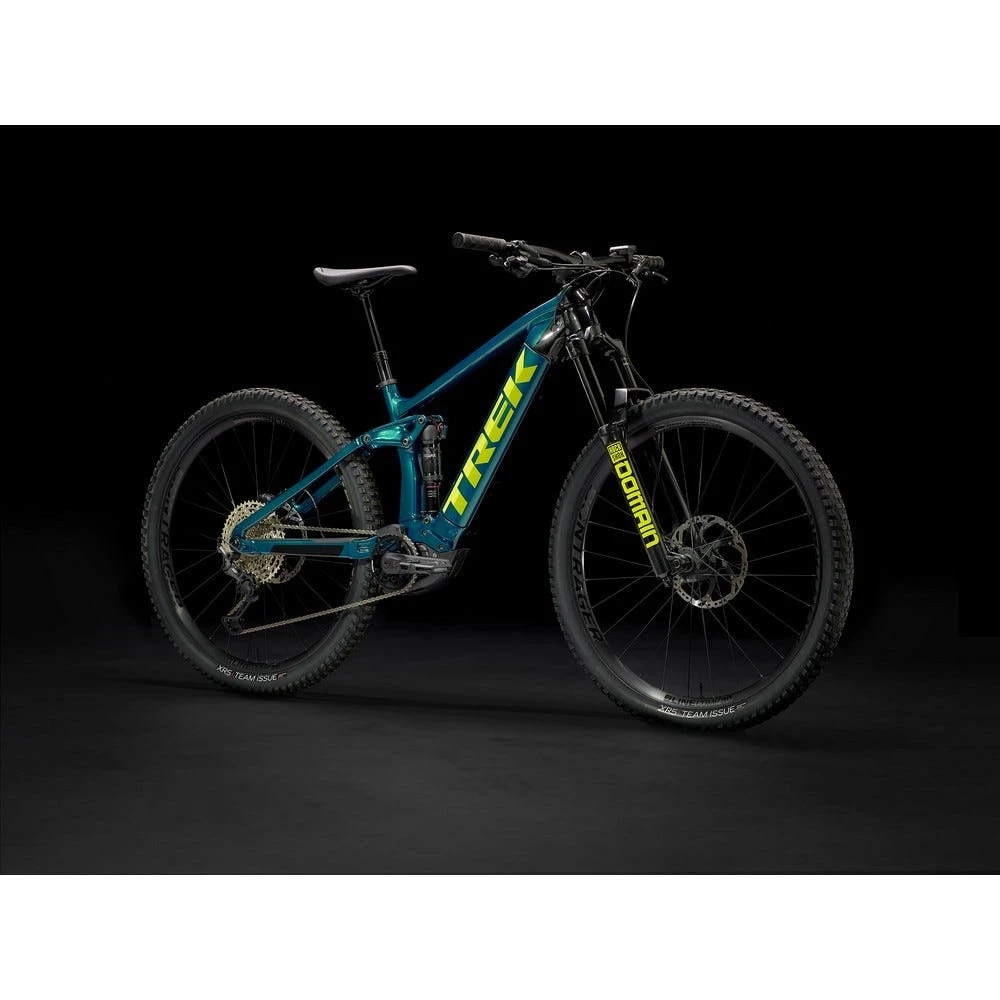

Trek Rail 7 Gen 2 Electric Mountain Bike

Trek Rail 7 Gen 2 Electric Mountain Bike

Specifications:

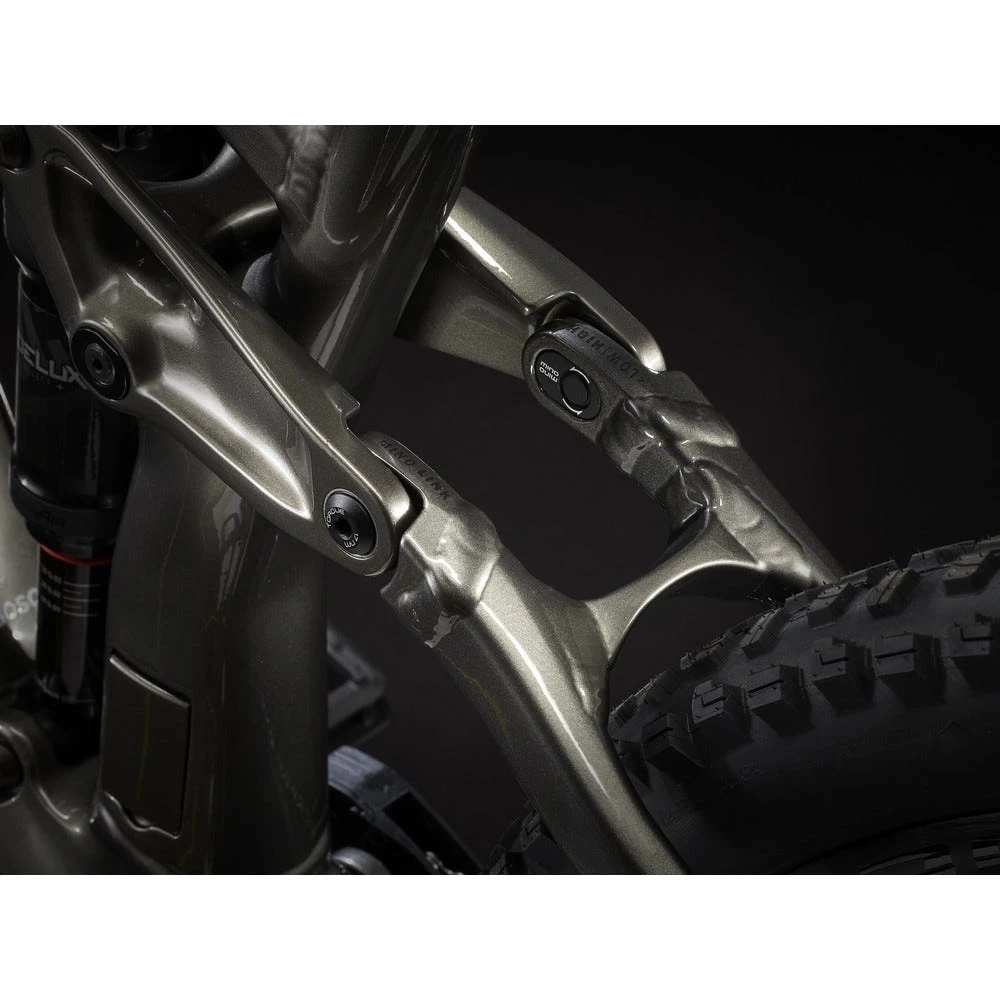

• Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
• Fork: RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

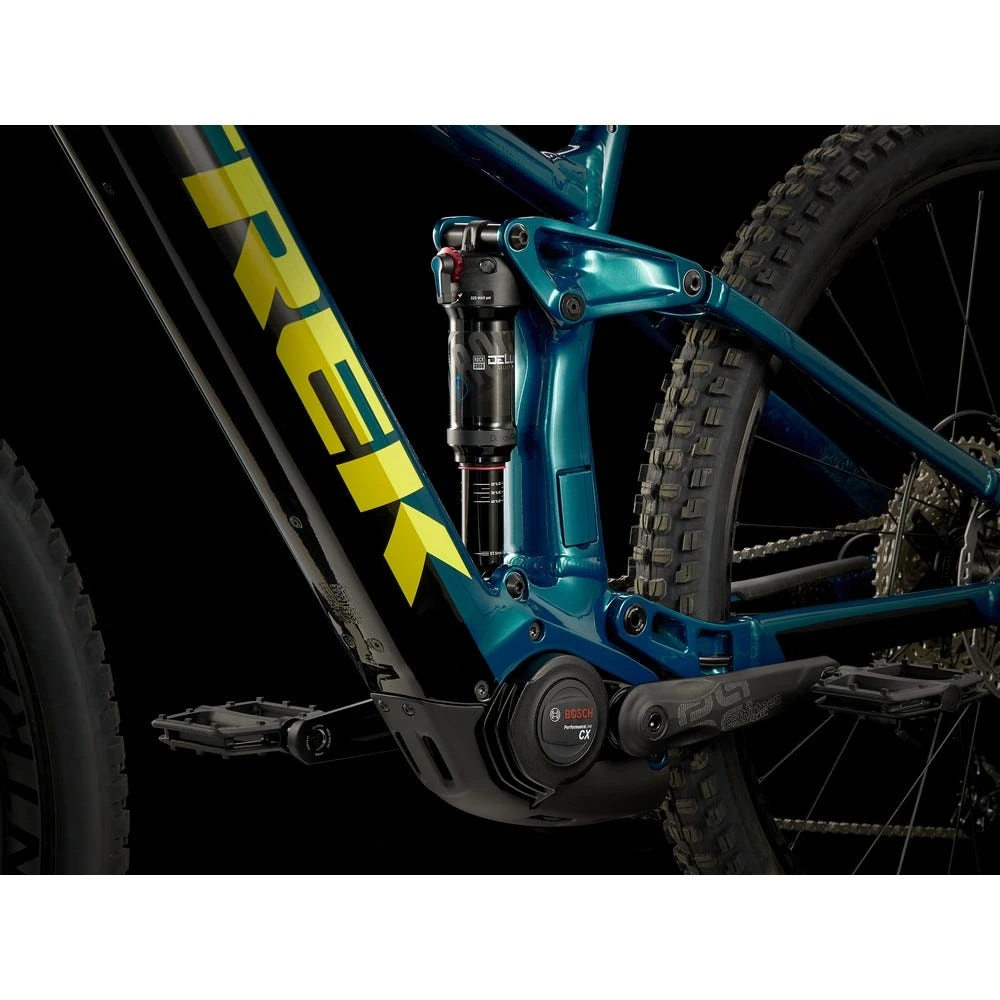

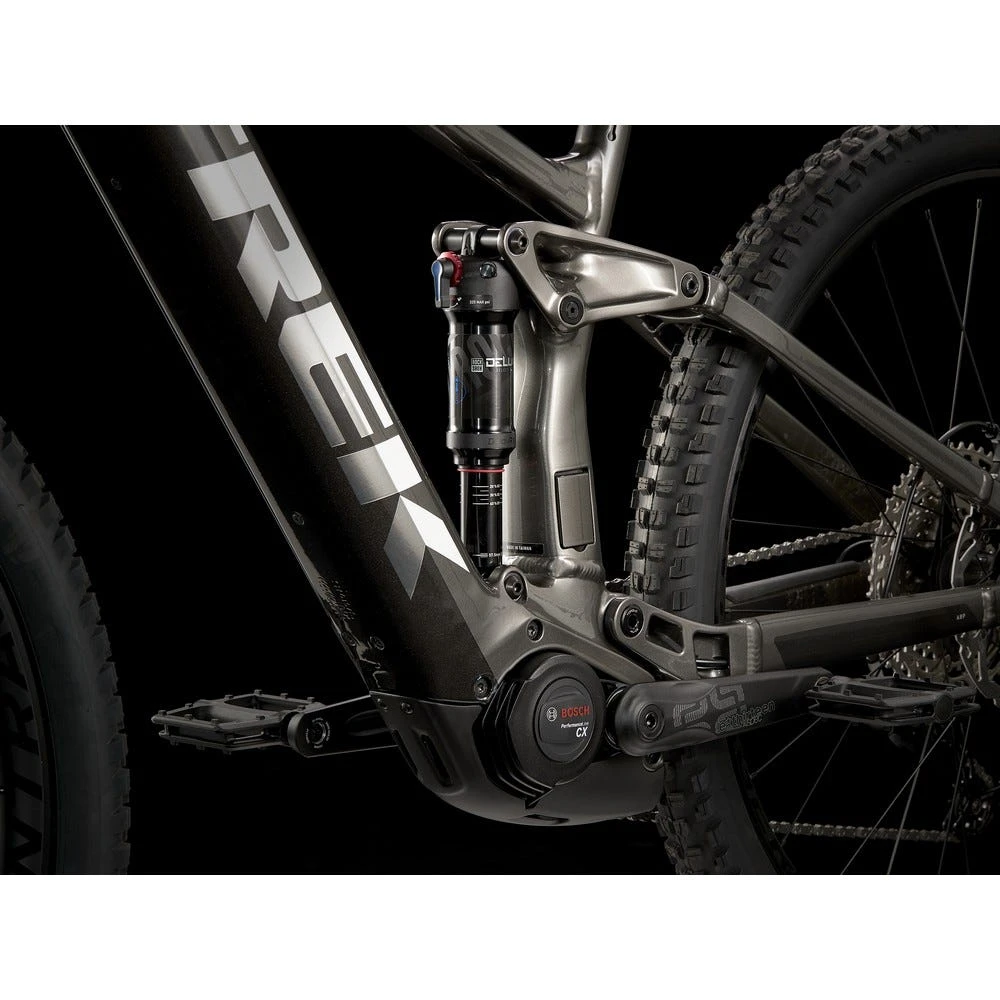

• Rear shock: RockShox Deluxe Select+, 230 x 57.5 mm
• Max compatible fork travel: 170mm (580 mm axle-to-crown)
• Front wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
• Rear wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
• Tires: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50″
• Tire sealant: Bontrager TLR sealant, 180 ml
• Rim strip: Bontrager TLR
• Max rear tire size: 29×2.60″
• Shifter: Shimano SLX M7100, 12-speed
• Rear derailleur: Shimano XT M8100, long cage, 51T max cog
• Crank: E*thirteen E*spec Plus, 165 mm length
• Chain ring: E*thirteen, 34T, steel
• Cassette: Shimano Deore M6100, 10-51, 12-speed
• Chain: Shimano SLX M7100, 12-speed
• Pedals: VP-536 nylon platform
• Max chainring size: 34T
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length, size SMALL has 100 mm travel, 361 mm length
• Handlebar: Bontrager Rhythm Comp, alloy, 31.8 mm, 15mm rise, 780 mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
• Headset: Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8″ top, 1.5″ bottom
• Brakes: Shimano M6120 4-piston hydraulic with Shimano RT76, 6-bolt 203 mm rotors
• Battery: Bosch PowerTube 625
• Charger: Bosch standard 4A (100-240V)

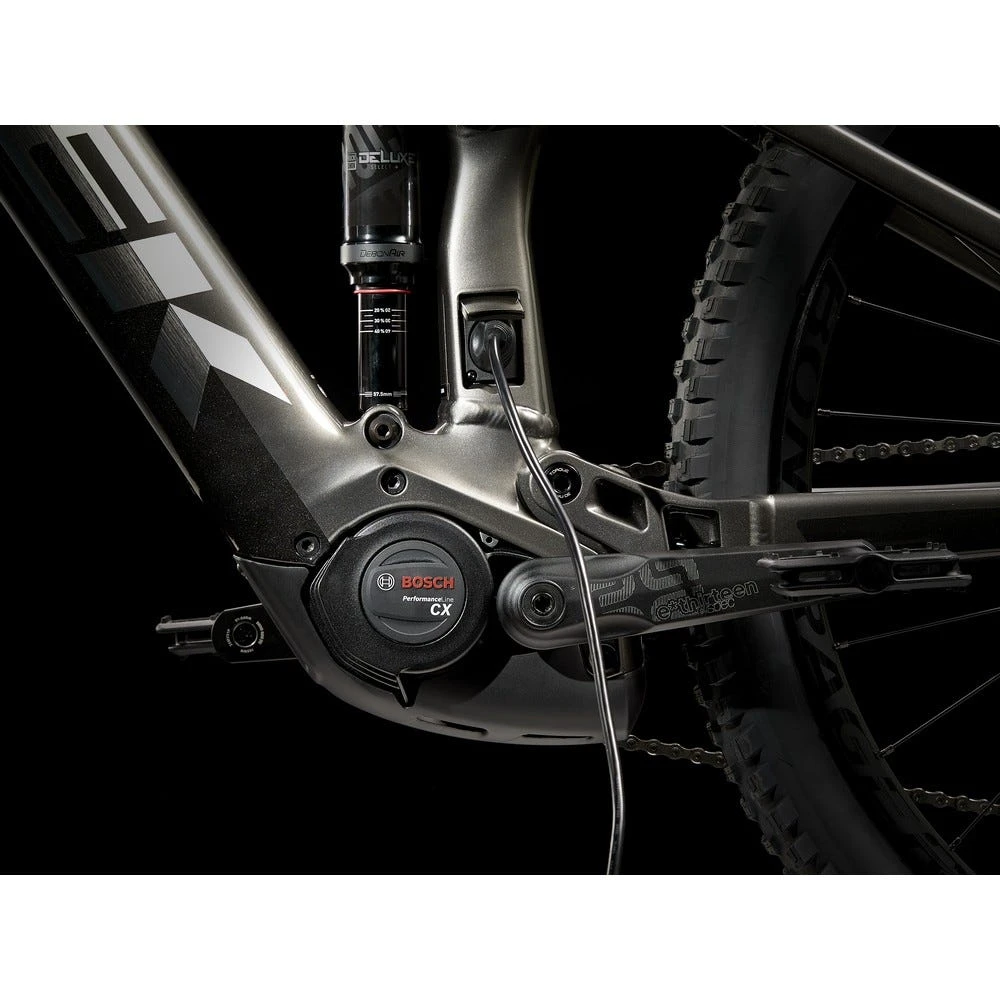

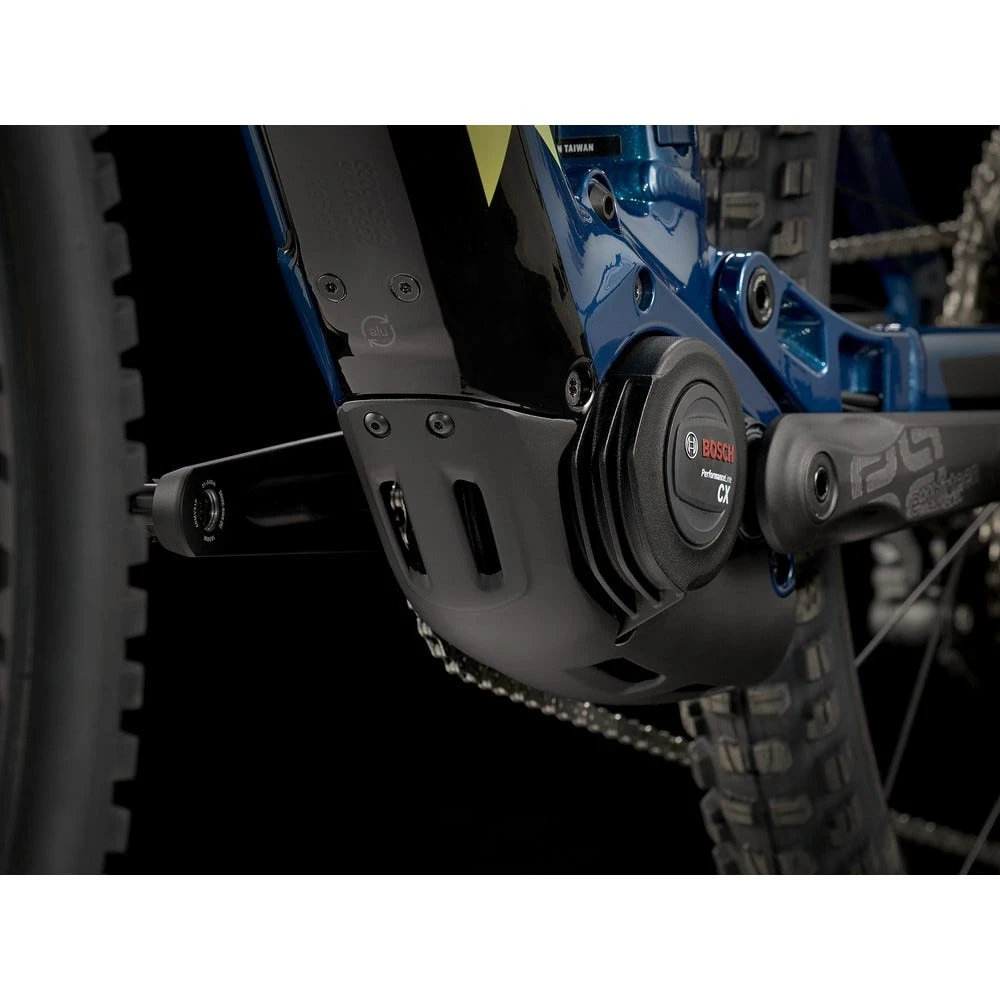

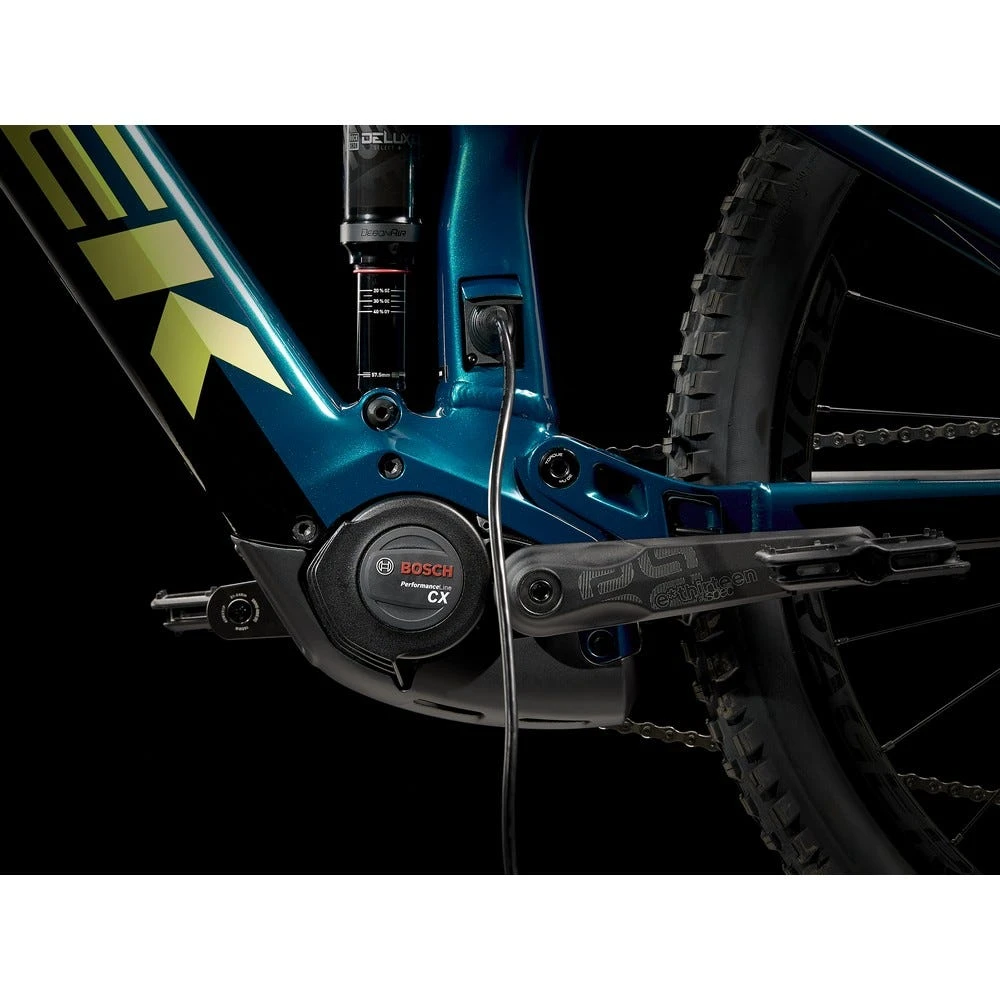

• Motor: Bosch Performance Line CX, magnesium motor body, 85 Nm, 32km/h max assist

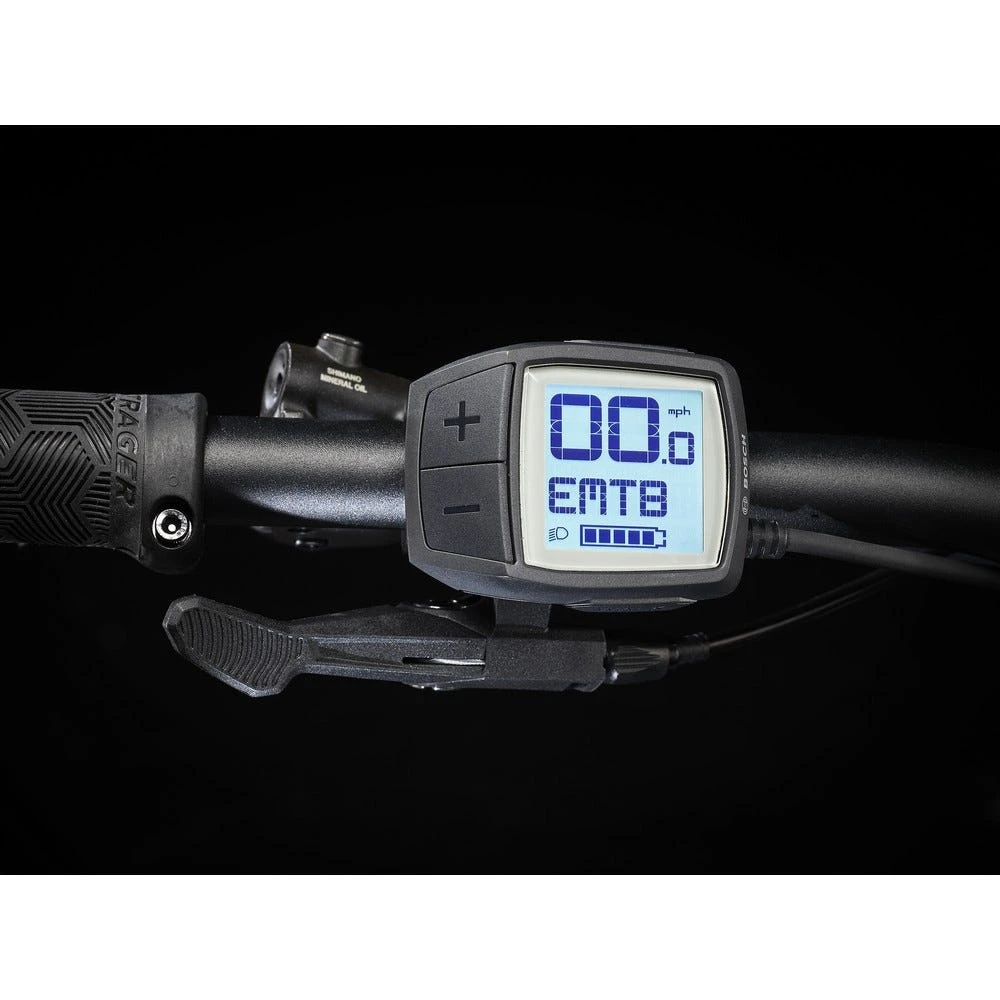

• Computer: Bosch Purion

Due to supply chain issues with certain bike suppliers, compatible components may be substituted at any time without notice.
