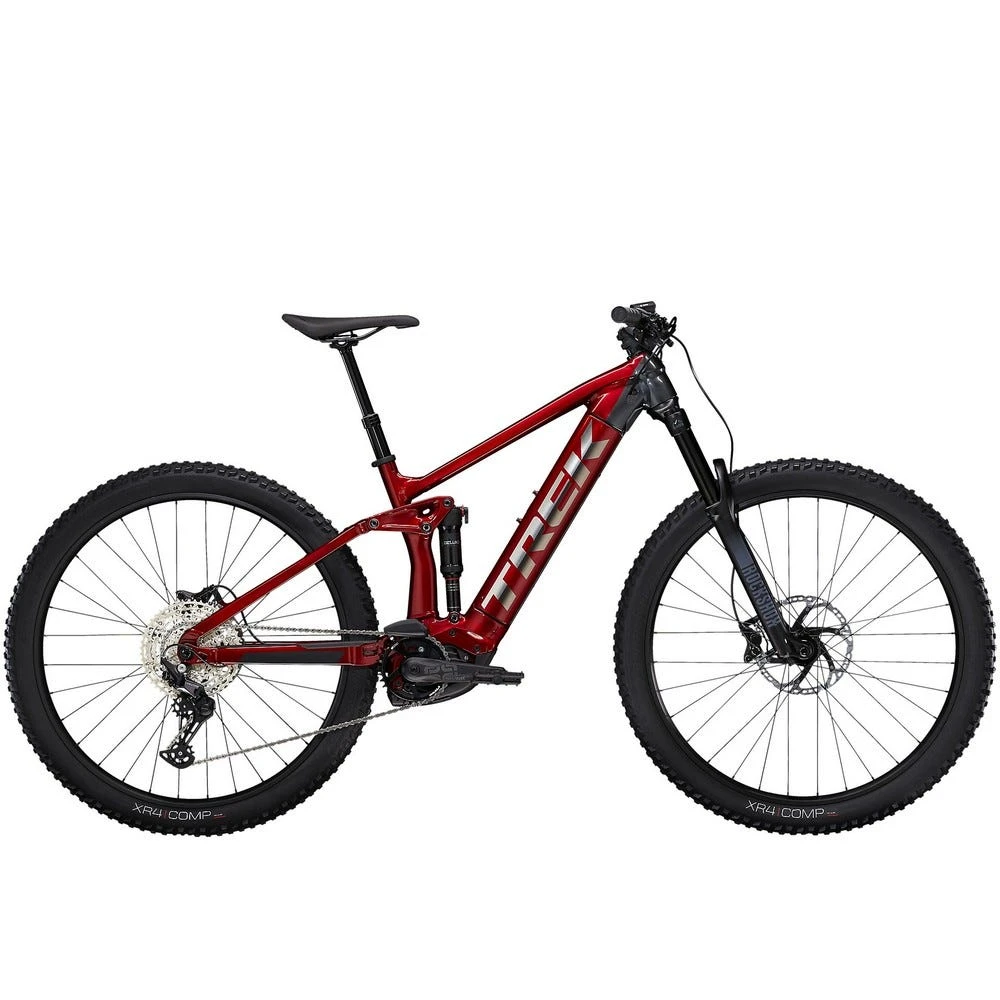

Trek Rail 5 Electric Mountain Bike

Trek Rail 5 Electric Mountain Bike

Specifications:

• Frame: Alpha Platinum Aluminum Removable Integrated Battery (RIB) tapered head tube Control Freak internal routing magnesium rocker link Motor Armor Mino Link ABP Boost148 12mm thru axle 150mm travel
• Fork: RockShox 35 Gold RL DebonAir spring Motion Control damper lockout tapered steerer 44 mm offset oversized crown for eMTB Boost110 15 mm Maxle Stealth 160 mm travel
• Rear shock: RockShox Deluxe Select+ 230×57.5mm
• Front hub: Bontrager sealed bearing alloy axle 6-bolt Boost110 15mm thru axle
• Rear hub: Bontrager alloy sealed bearing alloy axle 6-bolt Shimano MicroSpline freehub Boost148 12 mm thru axle
• Rims: Alex MD35 tubeless compatible 32-hole 35mm width presta valve
• Tires: Bontrager XR4 Comp wire bead 30 tpi 29×2.60
• Shifter: Shimano Deore M6100 12-speed
• Rear derailleur: Shimano Deore M6100 long cage
• Crankset: Ethirteen Espec Plus 34T 165 mm length
• Cassette: Shimano Deore M6100 10-51 12 speed
• Chain: Shimano Deore M6100 12-speed
• Pedals: VP-536 nylon platform
• Saddle: Bontrager Arvada steel rails 138 mm width
• Seatpost: TranzX JD-YSP18 130mm travel internal routing 31.6mm 425mm length (361mm length with 100mm travel for sizes XS and S)
• Handlebar: Bontrager alloy 31.8mm 15mm rise 750mm width
• Grips: Bontrager XR Trail Comp nylon lock-on
• Stem: Bontrager Rhythm Comp 31.8mm Knock Block 0-degree 50mm length
• Headset: Knock Block Integrated 58-degree radius cartridge bearing 1-1/8″ top 1.5″ bottom
• Brakes: Shimano 4-piston hydraulic disc MT4100 lever MT420 caliper Shimano RT76 rotors 6-bolt 203mm
• Charger: Bosch compact 2A (100-240V) charger
• Controller: Bosch Purion
• Motor: Bosch Performance CX magnesium motor body 250 watt 85 Nm 20mph or 32km/h max assist

Due to supply chain issues with certain bike suppliers, compatible components may be substituted at any time without notice.
