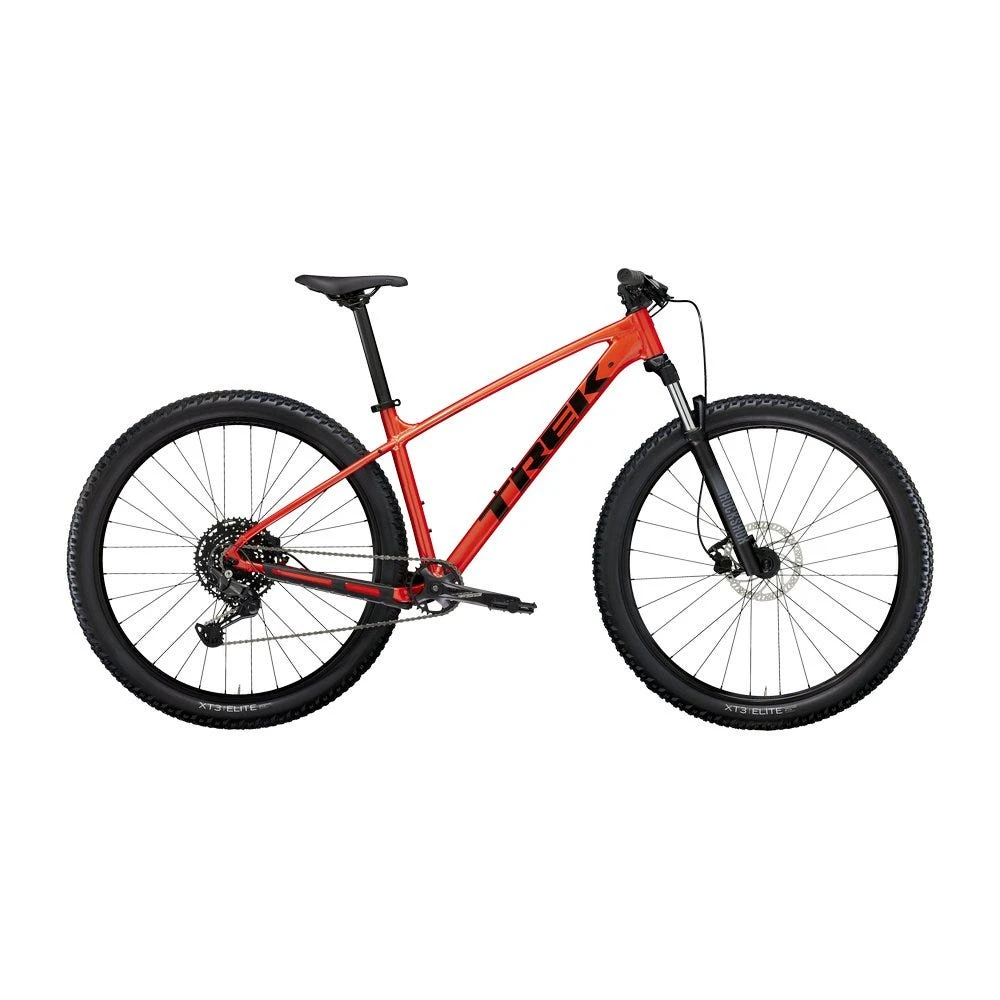

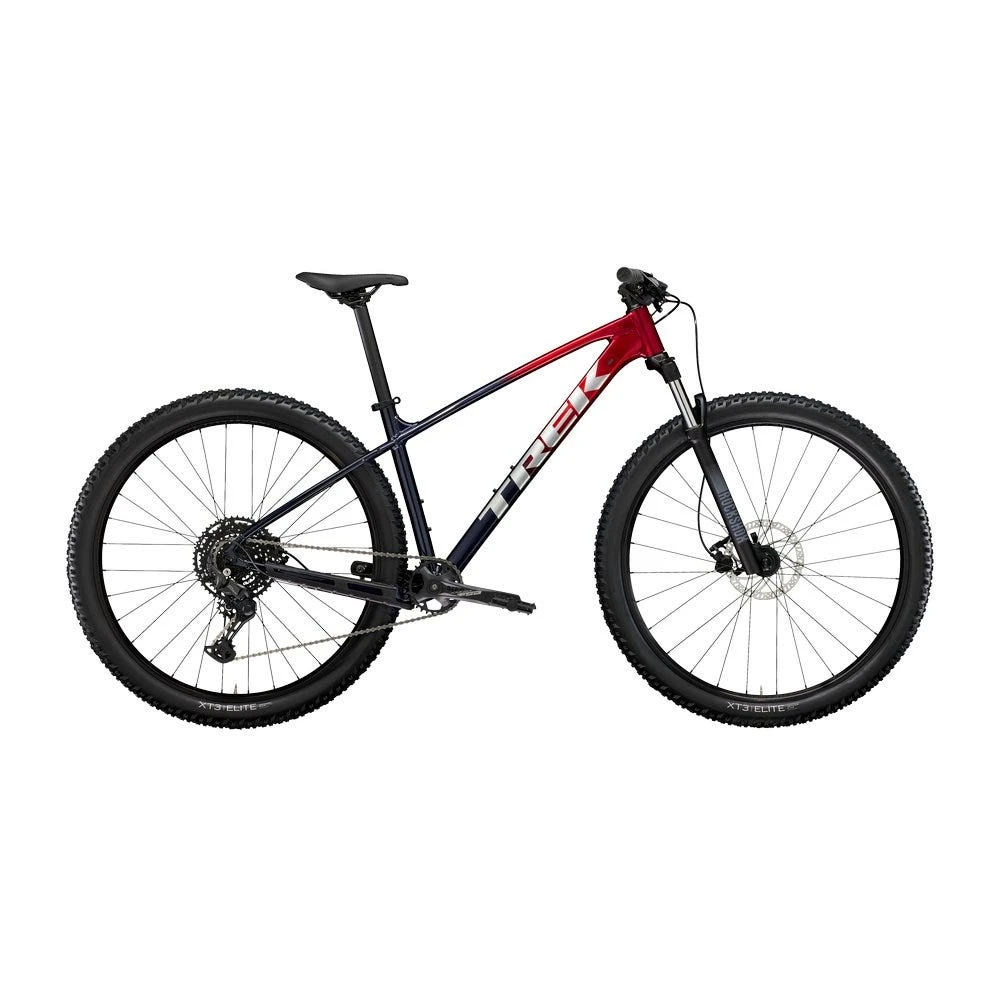

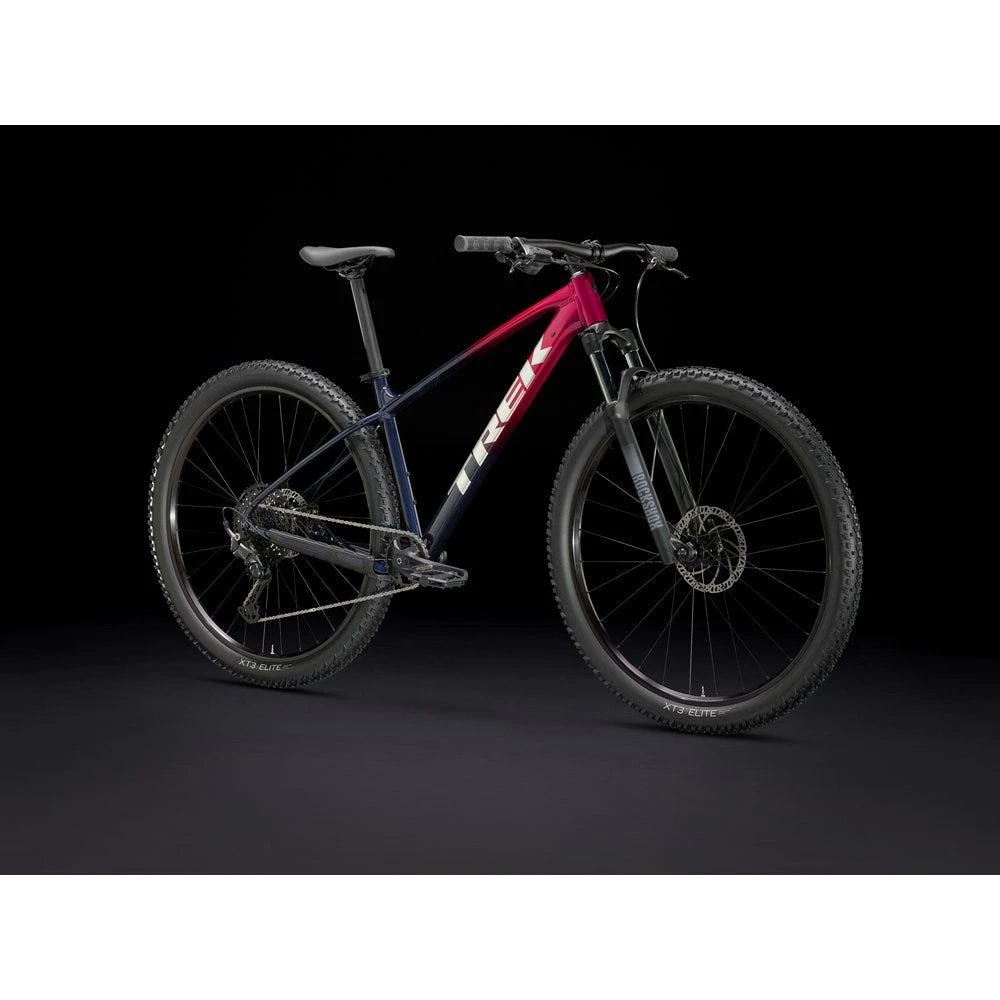

Trek Marlin 6 Gen 3 Mountain Bike

Trek Marlin 6 Gen 3 Mountain Bike

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

Specifications:

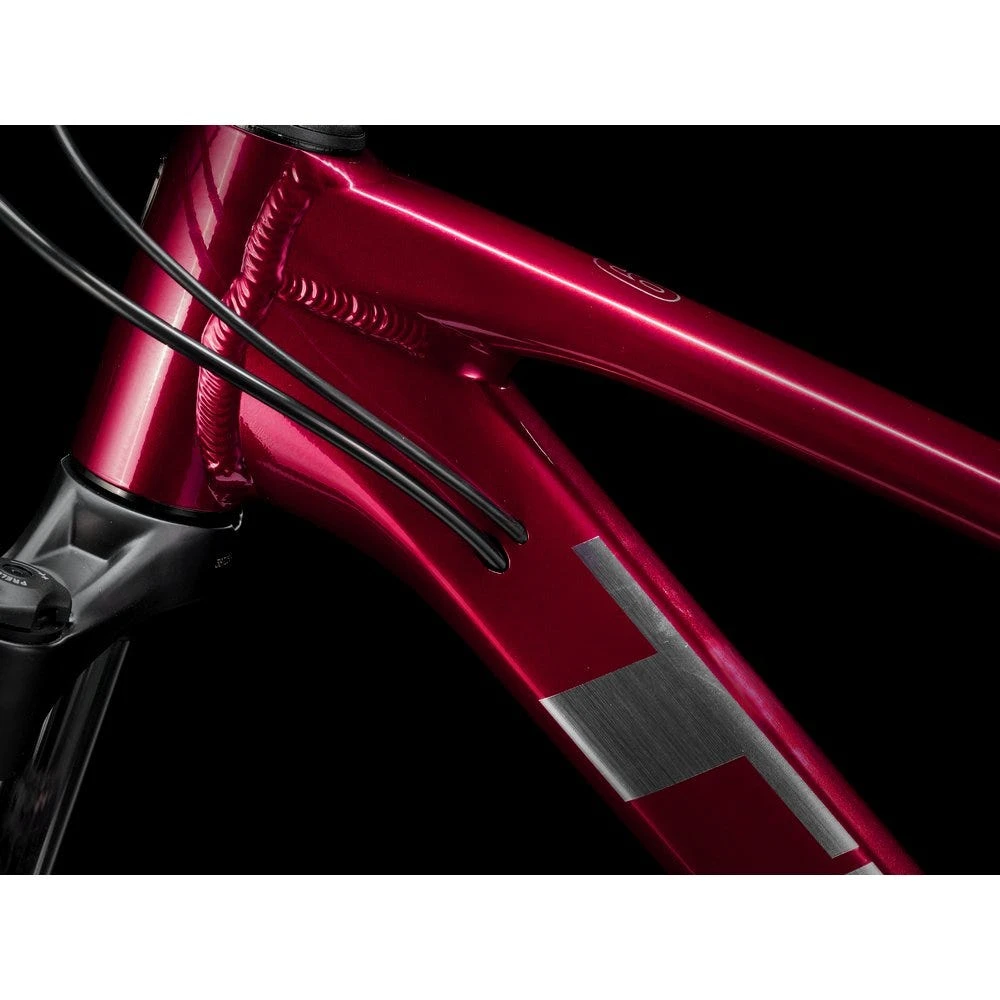

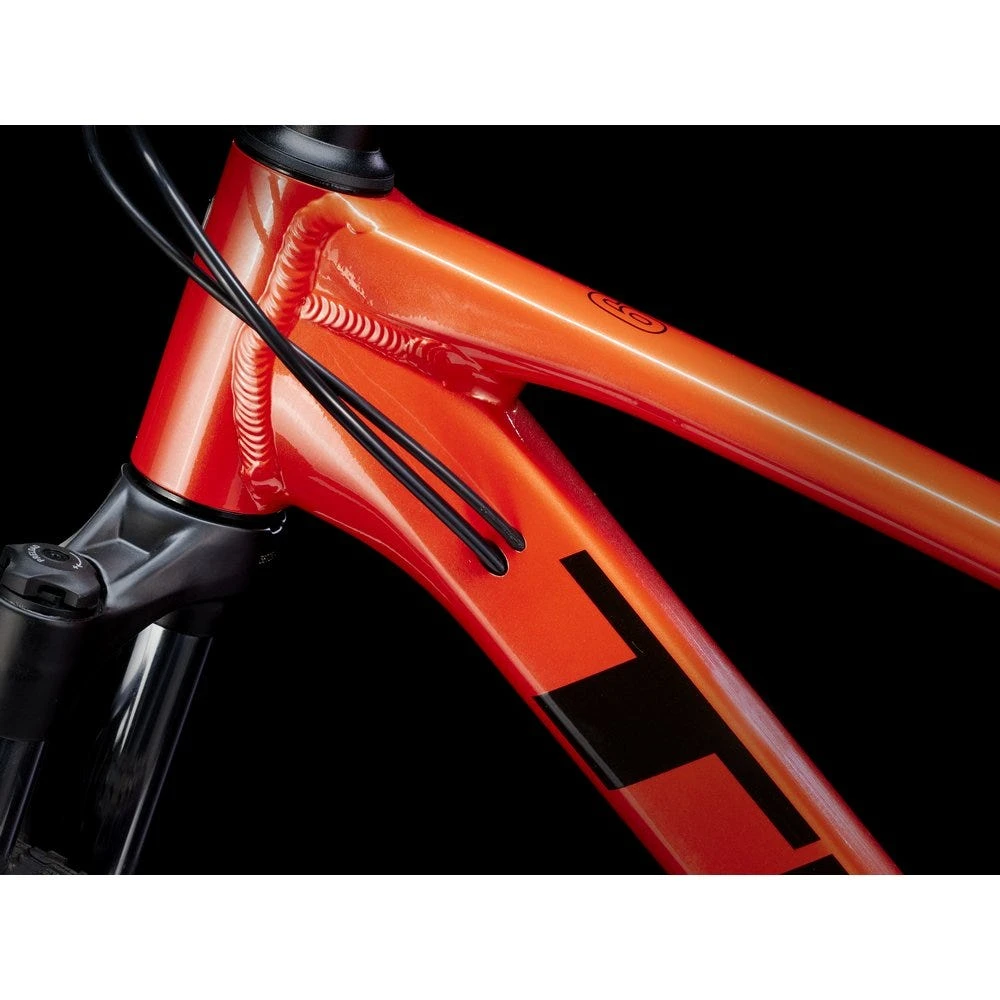

• Frame: Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135 x 5mm ThruSkew

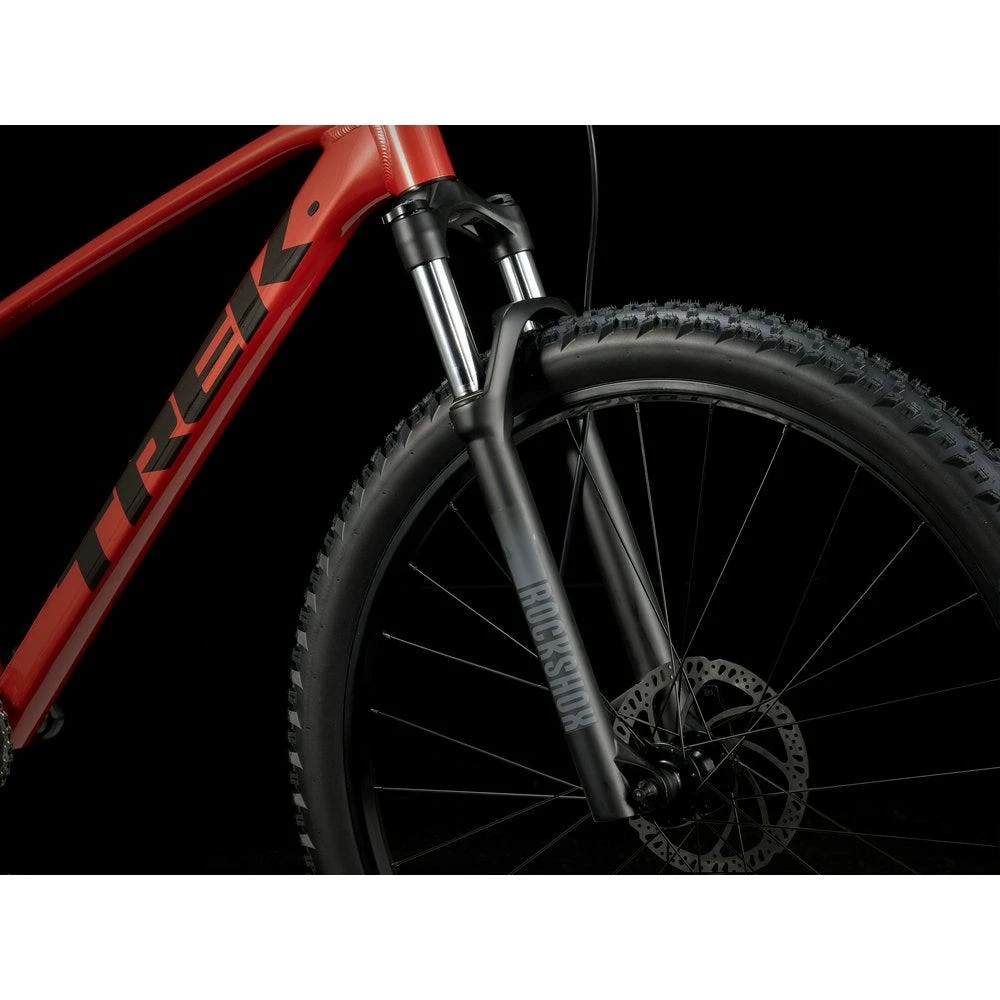

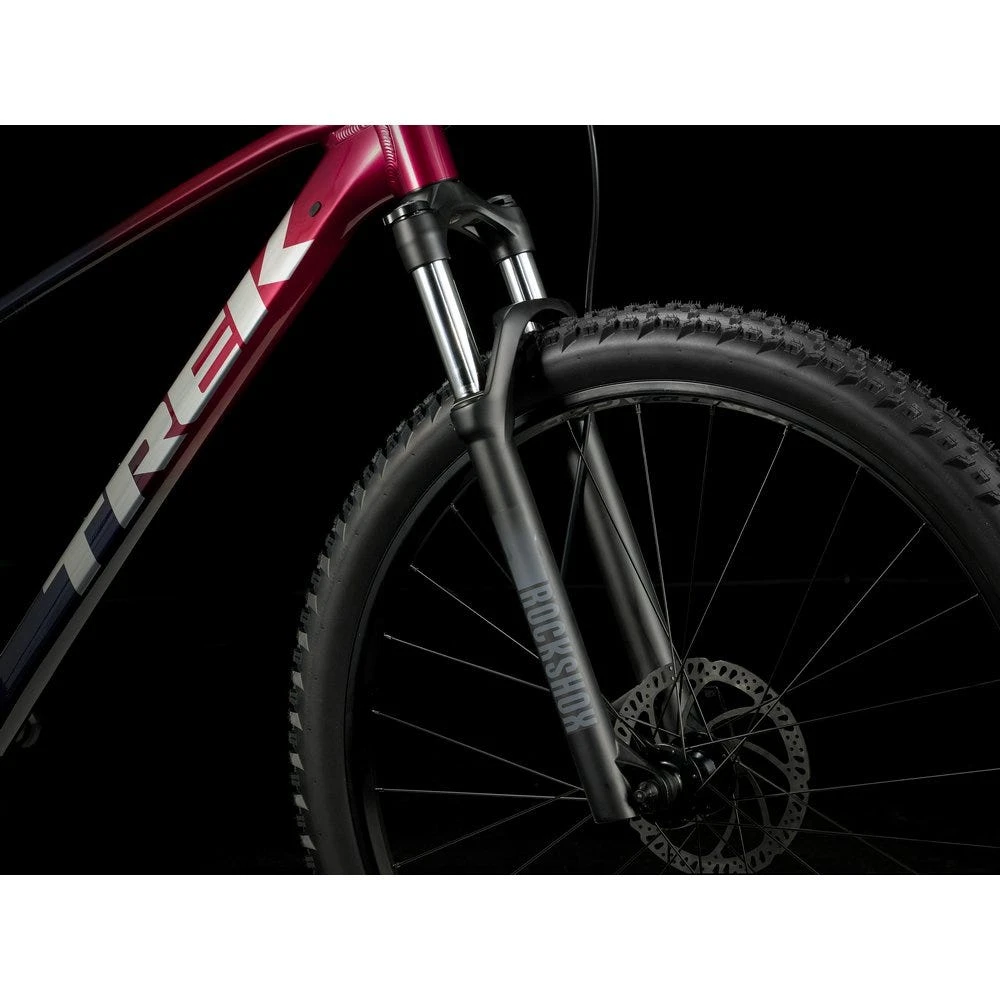

• Fork: RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29” wheel, 100 mm QR, 100 mm travel, RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5” wheel, 100 mm QR, 100 mm travel (XS, S), RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5” wheel, 100 mm QR, 80 mm travel (XXS),
• Front hub: Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
• Rear hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135 x 5 mm QR
• Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
• Tires: Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 29×2.35″, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60 tpi, 27.5×2.35″ (sizes XS, S), Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26×2.35” (size XXS)
• Shifter: Shimano U6000, 10-speed

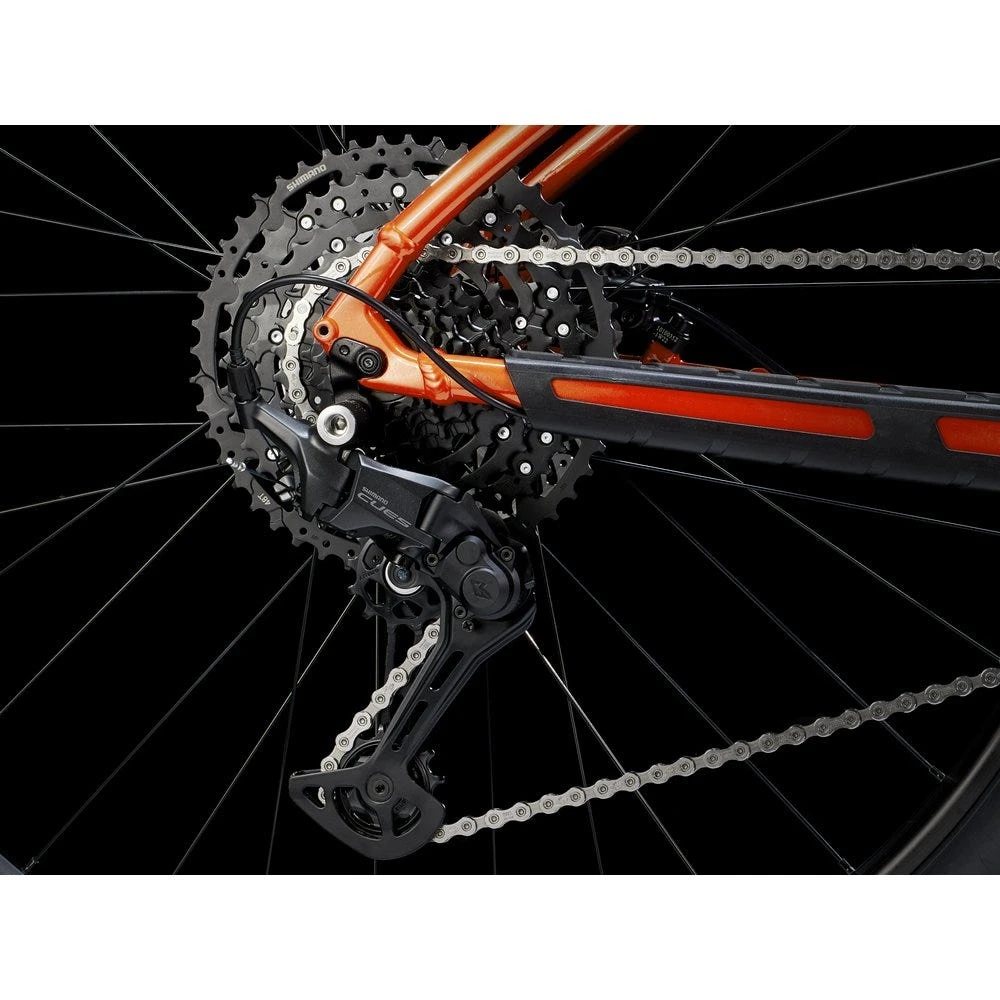

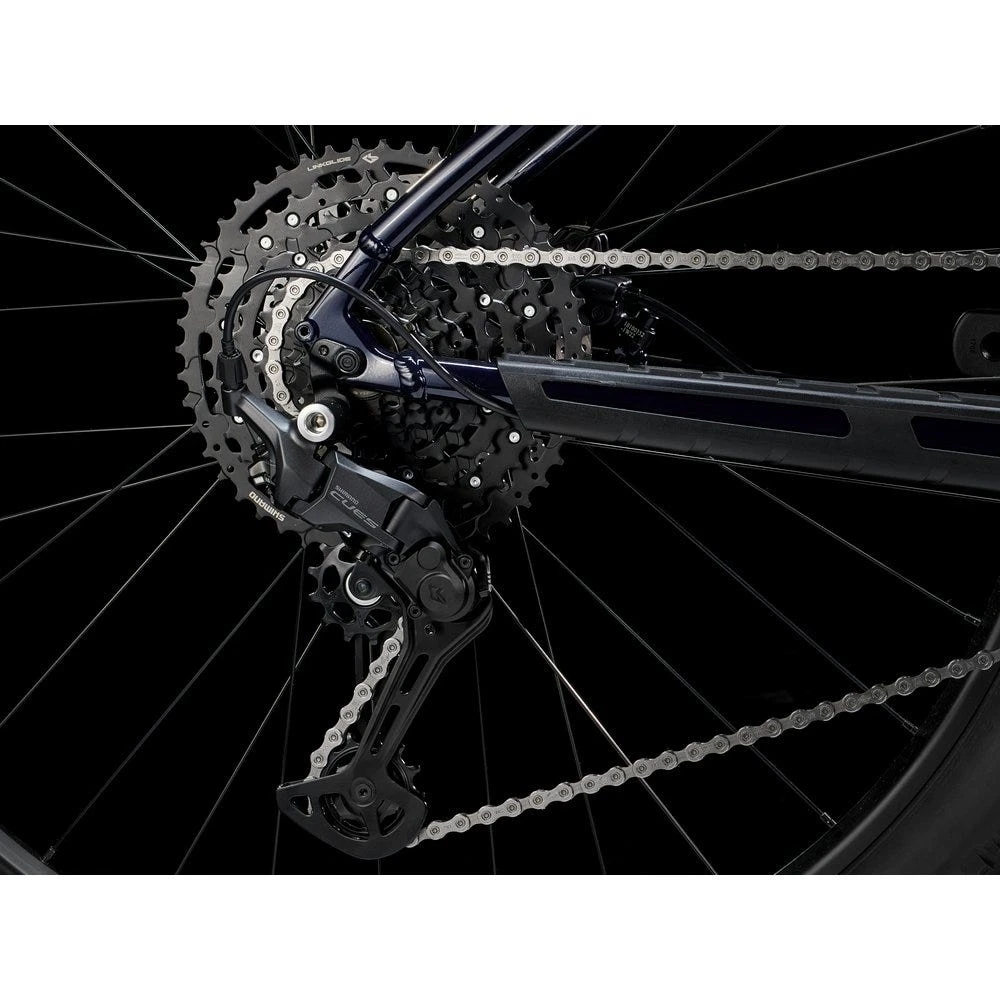

• Rear derailleur: Shimano CUES U6000 GS

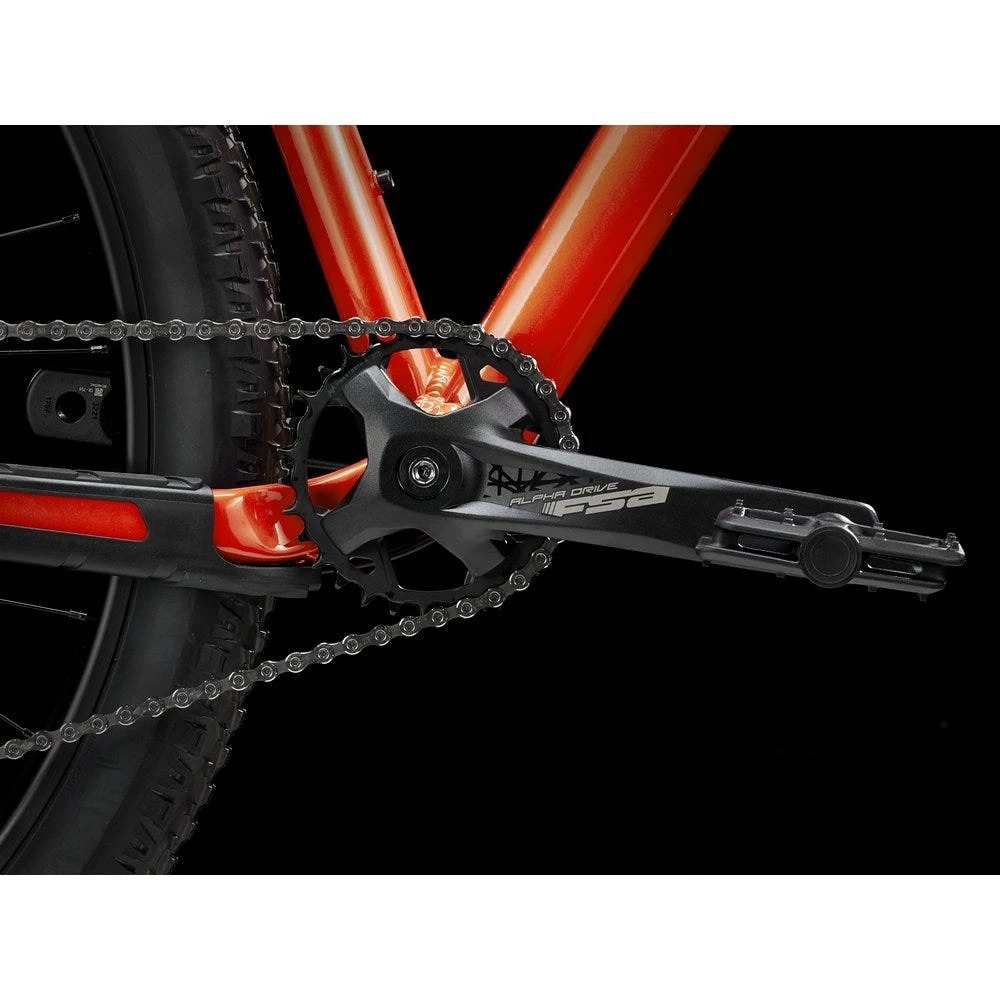

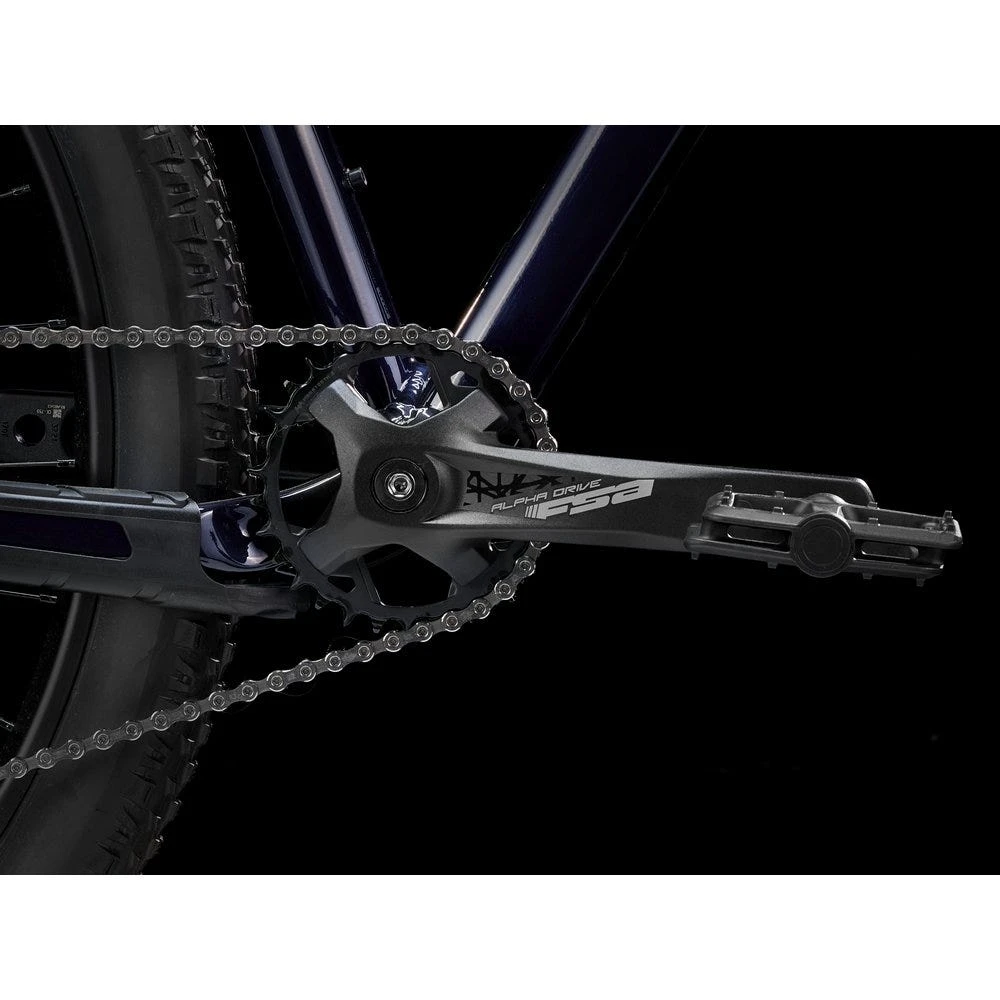

• Crank: FSA Alpha Drive, 30T, 160, 170 or 175 mm length depending on frame size
• Bottom bracket: FSA, 73 mm, threaded cartridge, 122.5 mm spindle
• Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
• Chain: Shimano LG500
• Pedals: VP-536 nylon platform
• Saddle: Bontrager Verse Short, stainless steel rails
• Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 300, 330 or 400 mm length depending on frame size
• Handlebar: Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm, 720 or 750 mm width depending on frame size
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Comp, 31.8mm, 7 degree, 35 to 70 mm length depending on frame size
• Headset: semi-integrated, 1-1/8″
• Brake rotor: Tektro, 6-bolt, 160 mm

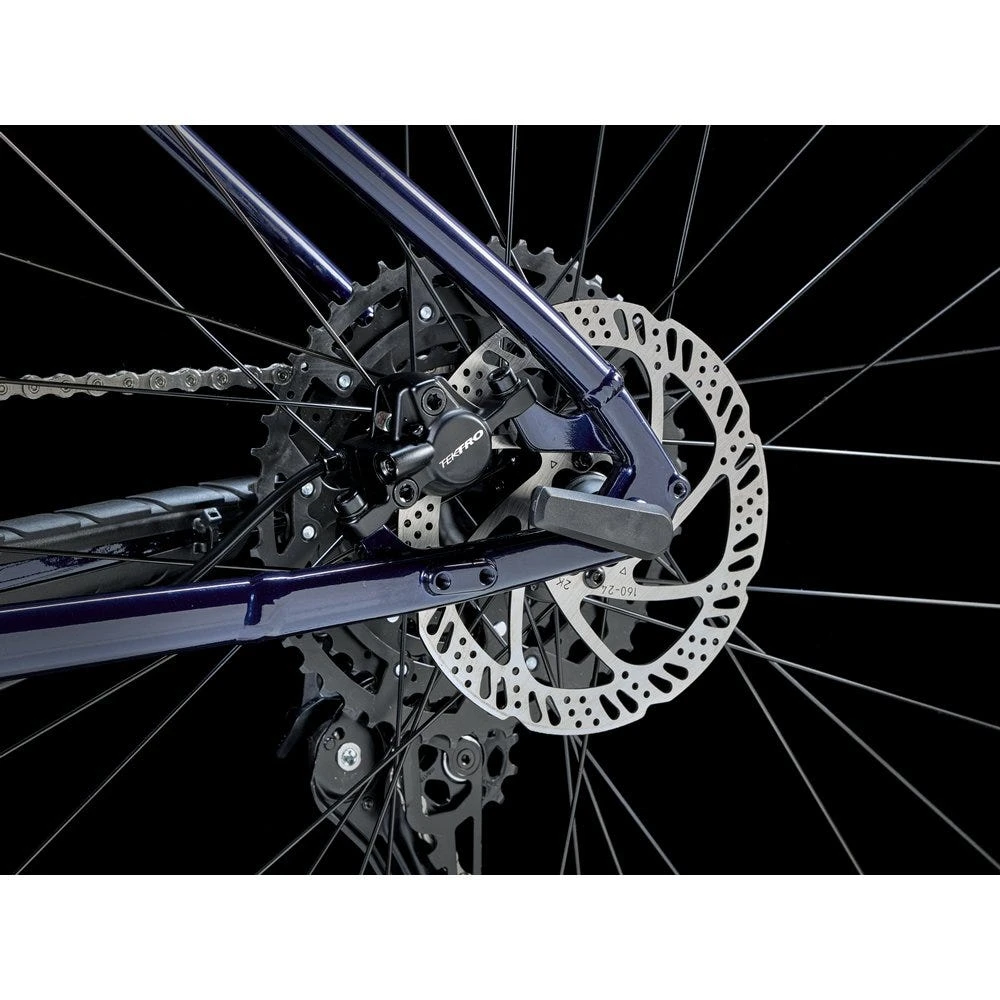

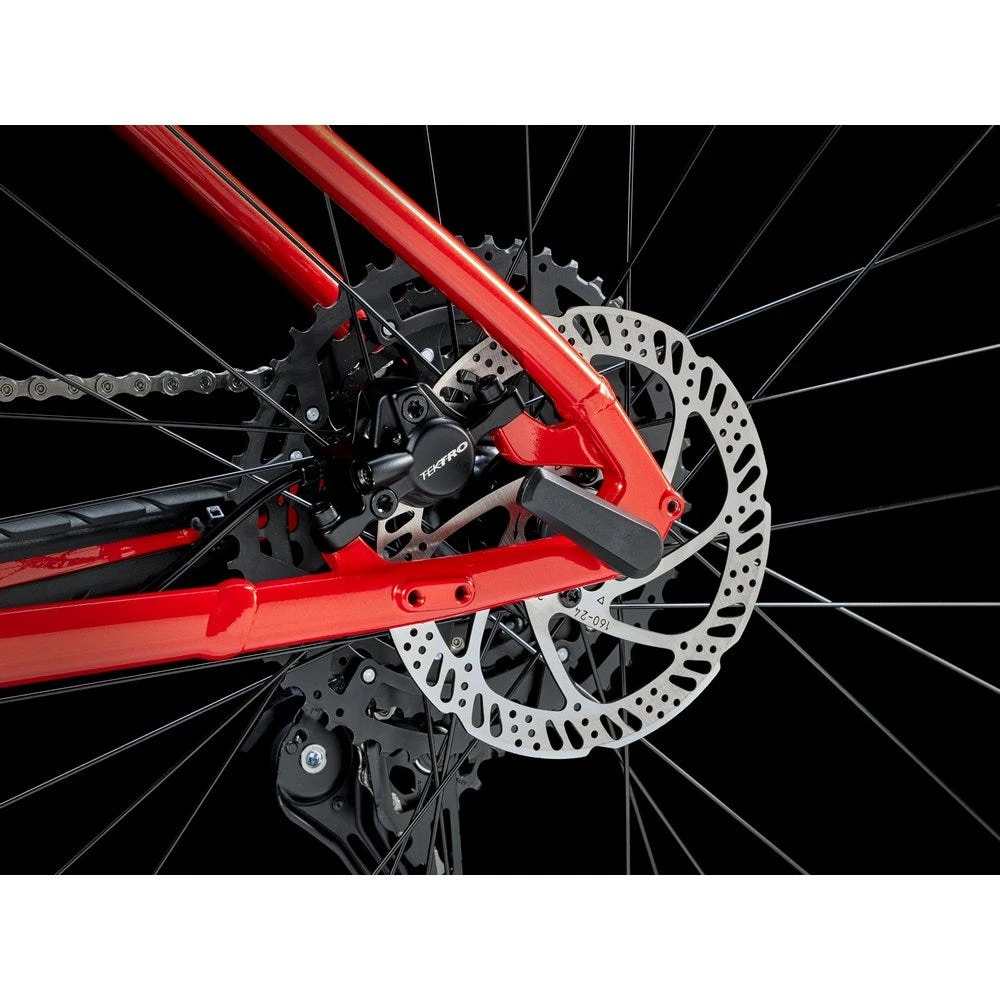

• Brakes: Tektro HD-M276 hydraulic disc
