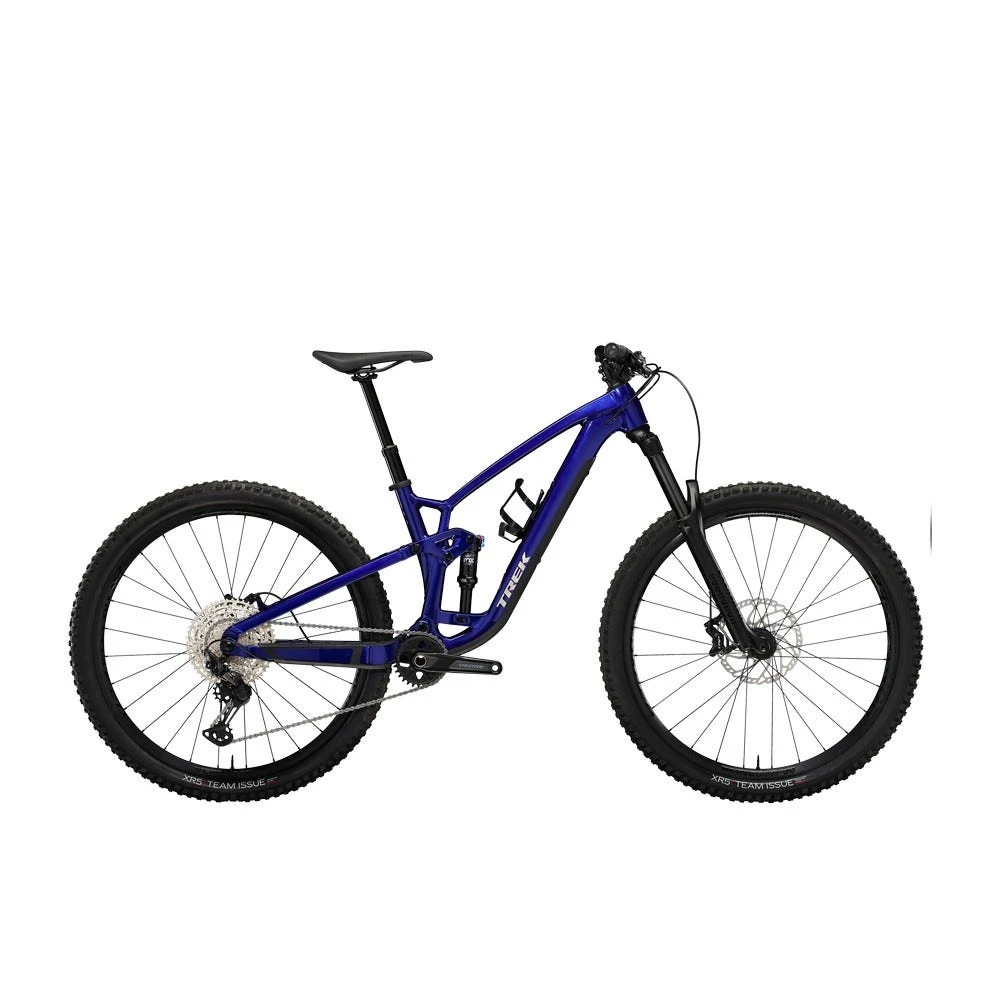

Trek Fuel EX 7 Gen 6 Mountain Bike
Specifications:

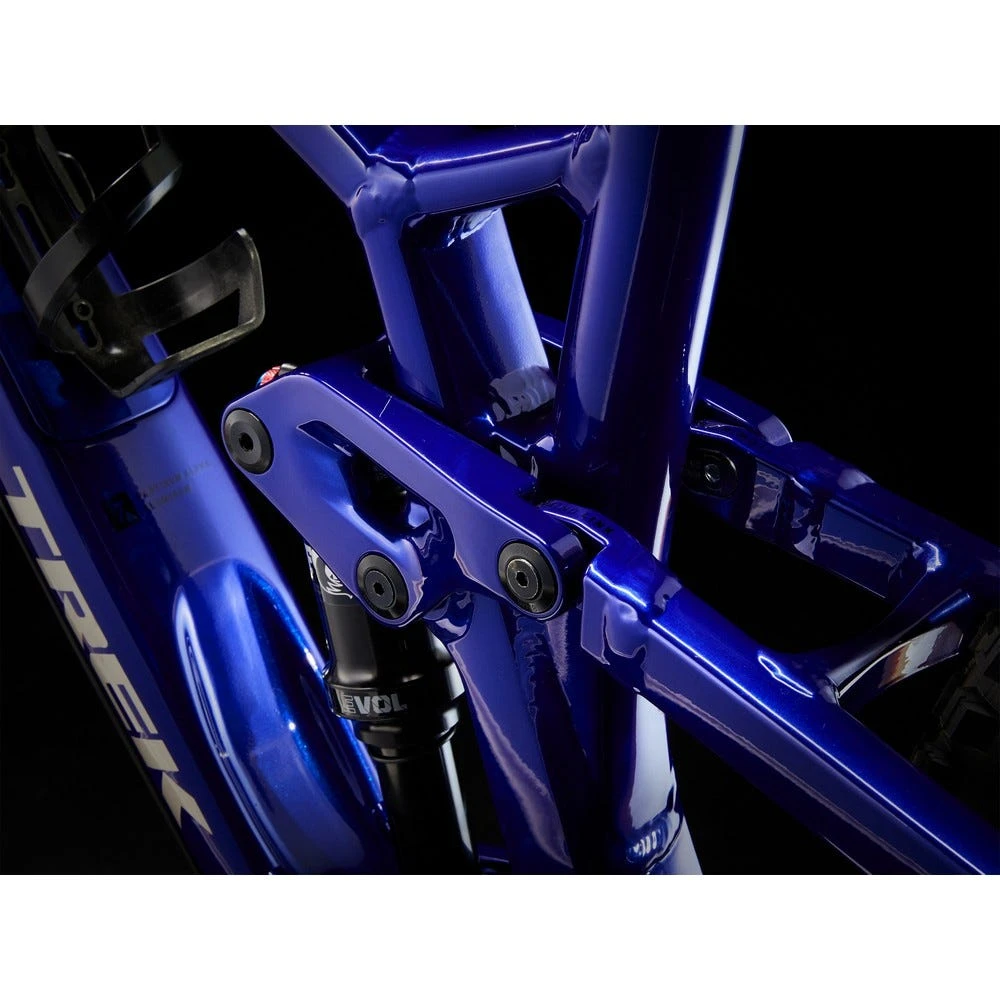

- Frame: Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
- Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15 mm Maxle Stealth, 150mm travel

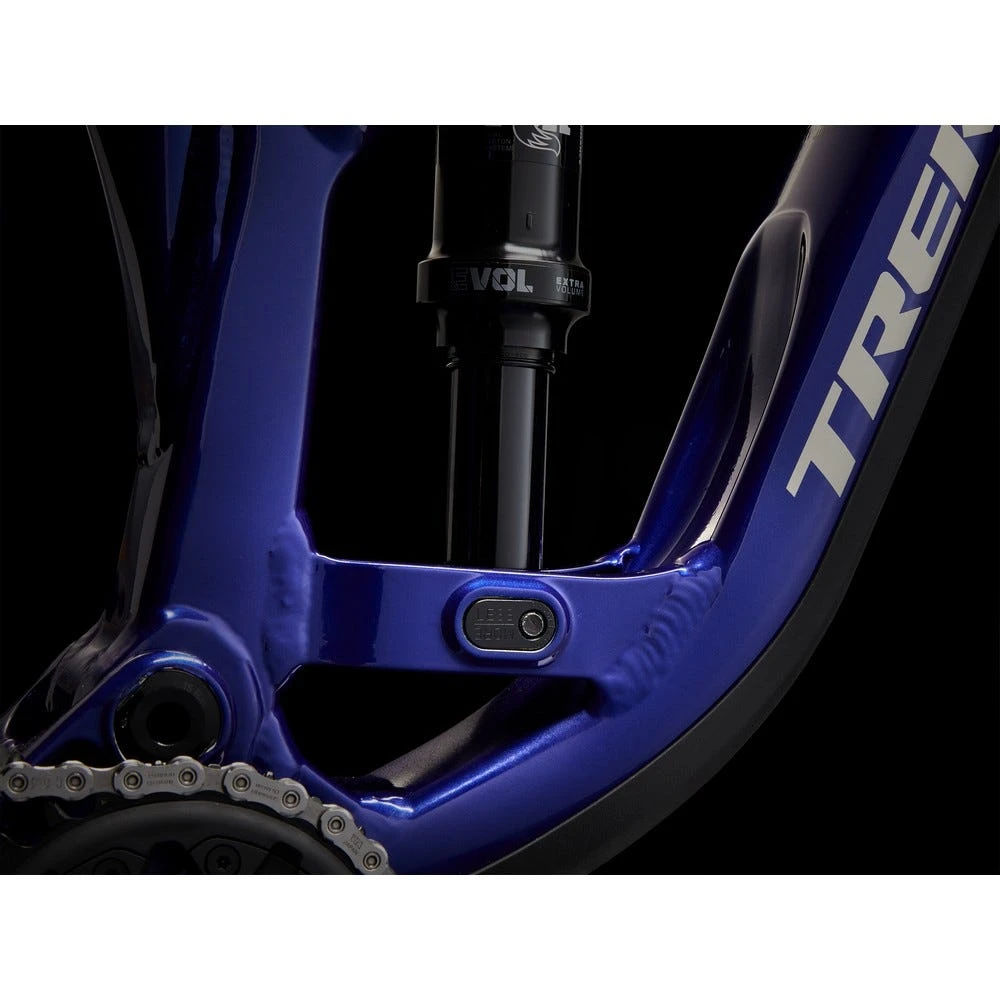

- Shock: Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185mm x 55mm
- Front wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
- Rear wheel: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle
- Front hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
- Rear hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
- Skewers: Bontrager Switch thru-axle, removable lever
- Rims: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
- Tires: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 27.5×2.50″
- Tire sealant: Bontrager TLR sealant, 180 ml
- Shifter: Shimano SLX M7100, 12-speed
- Rear derailleur: Shimano XT M8100, long cage, 51T max cog
- Crank: Shimano Deore M6120, 30T ring, 55 mm chainline, 170mm length
- Bottom bracket: Shimano BB-MT501 BSA
- Cassette: Shimano Deore M6100, 10-51, 12-speed
- Chain: Shimano Deore M6100, 12-speed
- Saddle: Bontrager Arvada, steel rails
- Seatpost: TranzX JD-YSI-22PLQ, 100mm – 170mm travel depending on frame size, internal routing, 34.9 mm
- Handlebar: Bontrager Comp, alloy, 31.8 mm, 15mm rise, 750mm width
- Grips: Bontrager XR Trail Comp, nylon lock-on
- Stem: Bontrager alloy, 31.8 mm, Blendr compatible, 7 degrees, 35mm length
- Headset: Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, angle adjust cup compatible
- Brakes: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
- Brake rotors: Shimano RT66, 6-bolt, 180mm / 203mm

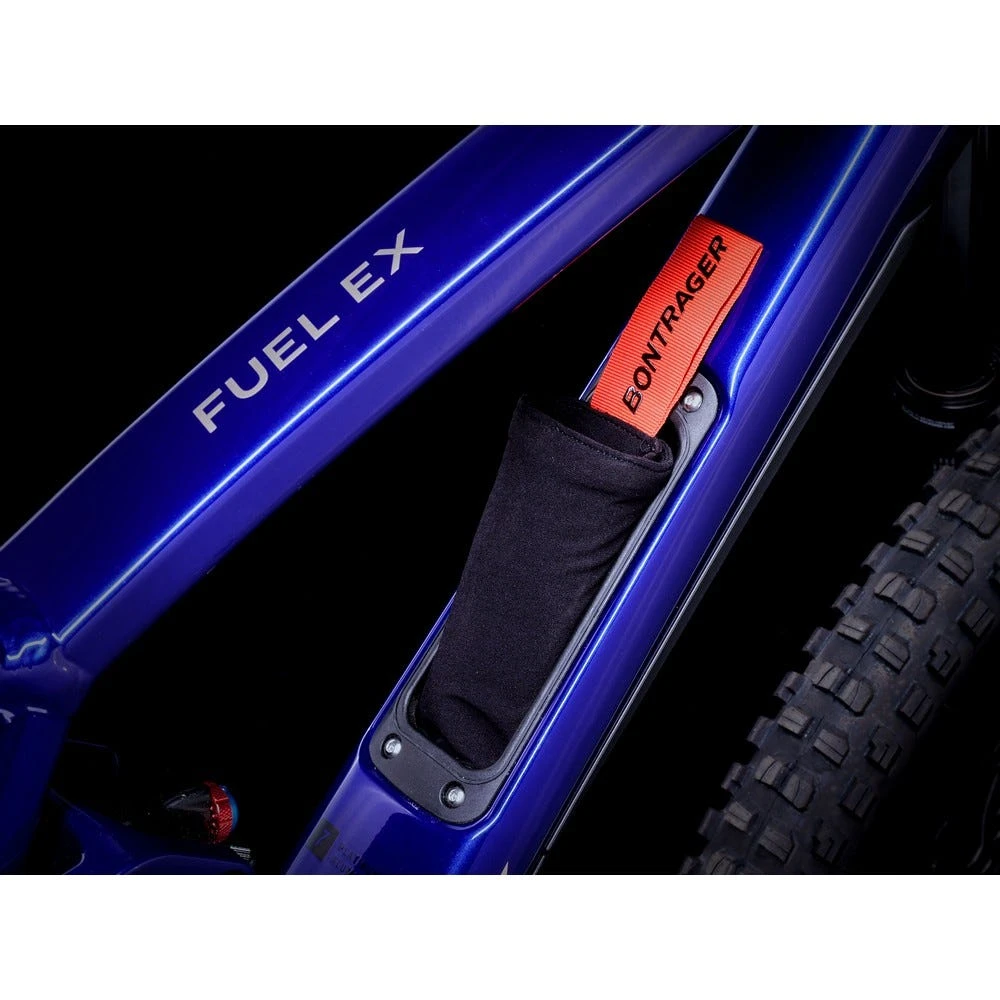

- Accessories: Bontrager BITS Internal Frame Storage Bag
Due to supply chain issues with certain bike suppliers, compatible components may be substituted at any time without notice.
