Trek Farley 9.6 Fatbike

Trek Farley 9.6 Fatbike

Farley 9.6 is a capable and ready carbon fat bike for riders who want to charge through snow drifts and sand dunes. Its OCLV carbon frame keeps your ride light, while huge 4.5-inch tires keep you floating in the deep stuff. It’s built up with a SRAM GX Eagle drivetrain that you can count on for more precise shifting and strong braking power — even when things get icy.

Specifications:

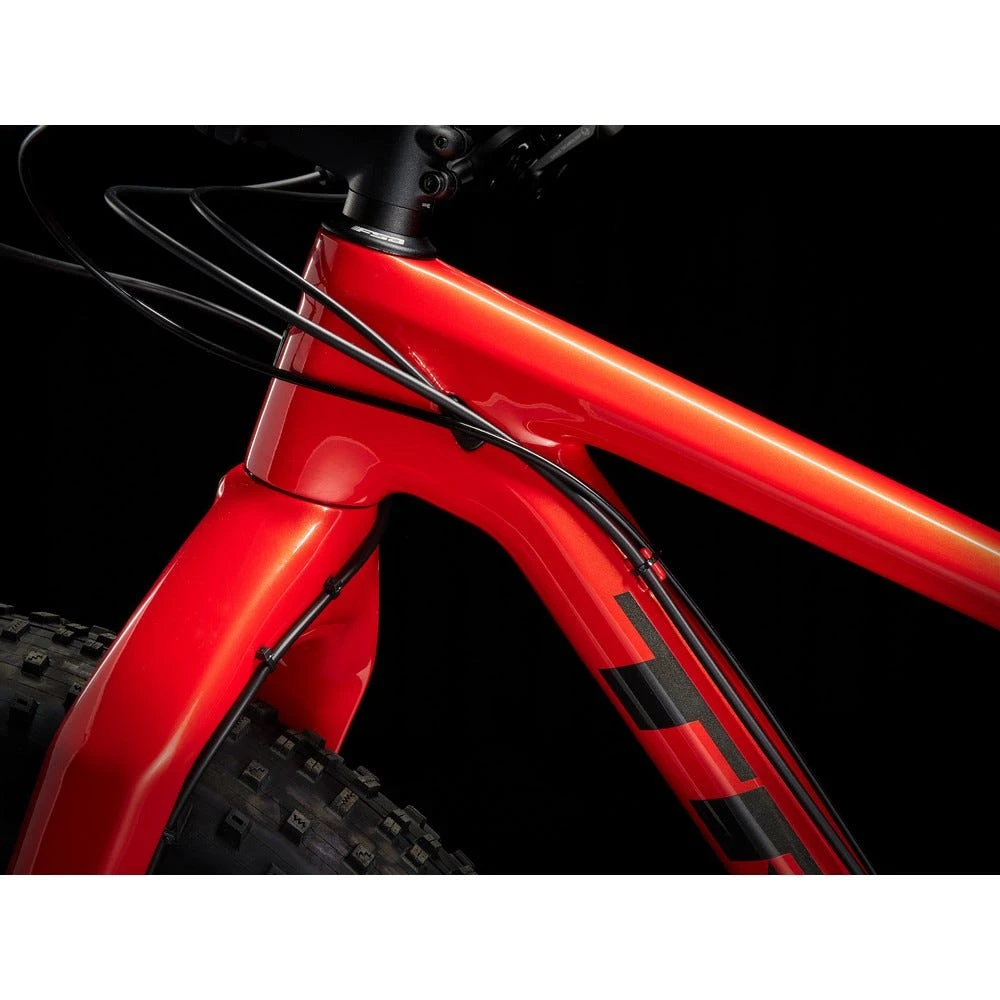

• Frame: OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, PressFit 121mm BB, 197x12mm adjustable horizontal sliding dropouts
• Fork: Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle, max compatible fork travel 100mm (513mm axle-to-crown)
• Front hub: Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle
• Rear hub: Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, 197×12 mm thru-axle
• Skewers: Bontrager Switch thru axle, removable lever
• Rims: SUNRingle Mulefut 80 SL, 32-hole cutout

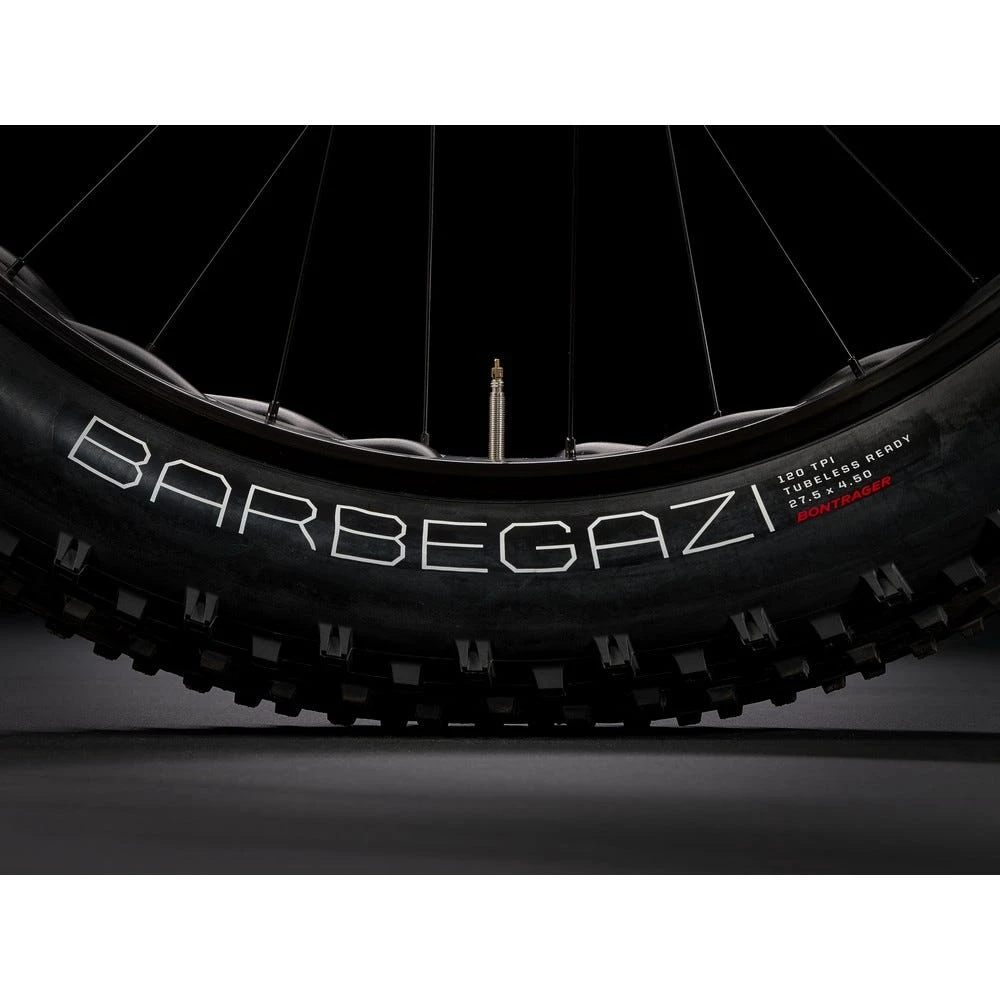

• Tires: Bontrager Barbegazi Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5×4.50″
• Max tire size Frame: 27.5×4.50″ or 26×4.70″
• Shifter: SRAM GX Eagle, 12 speed

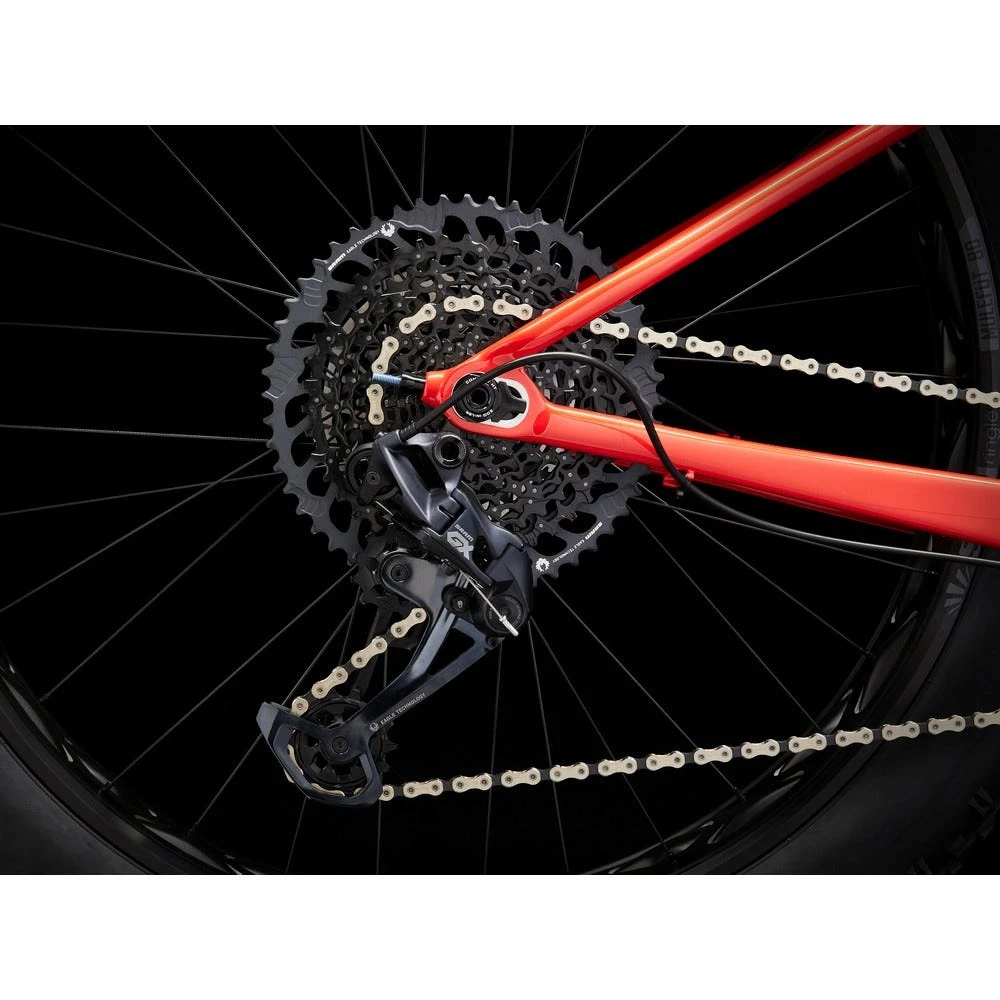

• Rear derailleur: SRAM GX Eagle

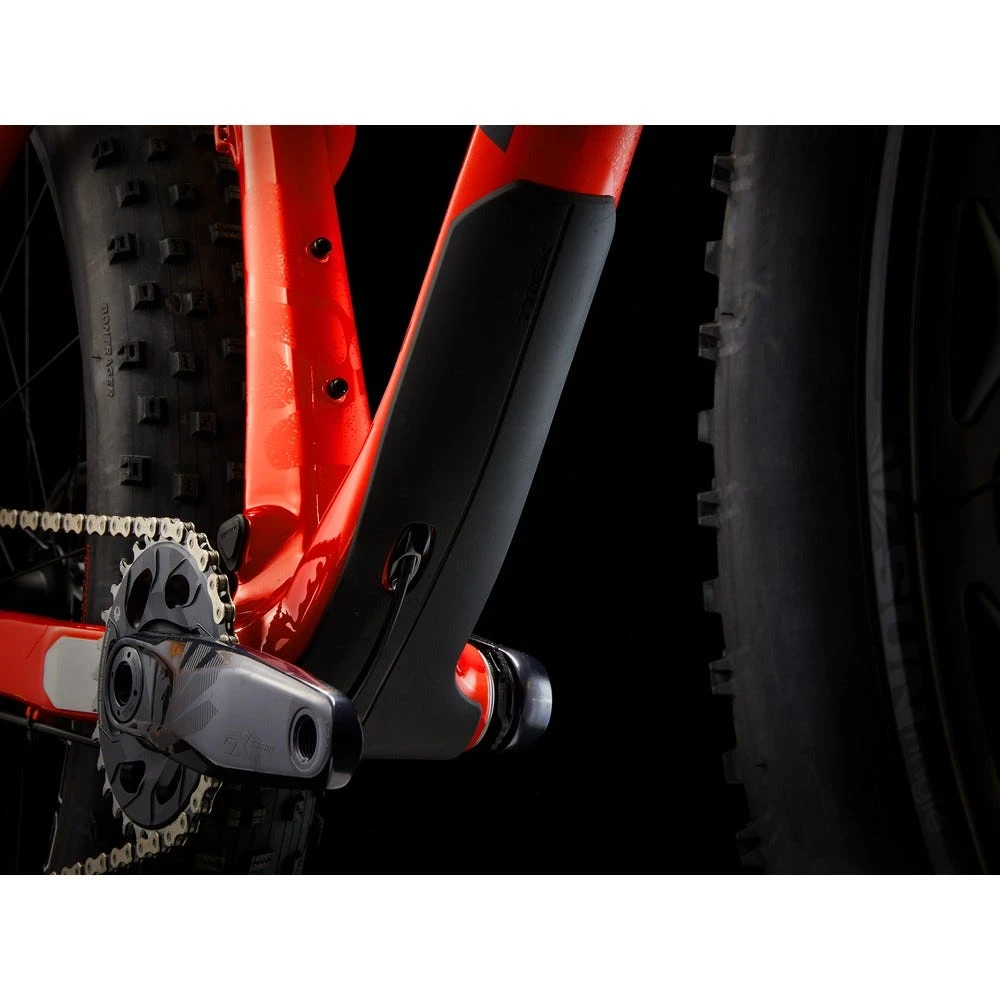

• Crank: SRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 170 mm length (sizes S, M), SRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 175 mm length (sizes L, XL)
• Bottom bracket: SRAM DUB, 121mm, PressFit
• Cassette: SRAM Eagle XG-1275, 10-52, 12 speed
• Chain: SRAM GX Eagle, 12 speed
• Pedals: VP-536 nylon platform
• Saddle: Bontrager Verse Elite, austenite rails, 145mm width
• Seatpost: TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length (size S), TranzX JD-YSP18, 120 mm travel, internal routing, 31.6 mm, 403 mm length (size M), TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length (sizes L, XL)
• Handlebar: Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
• Grips: ESI Chunky
• Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 – 90 mm length, depending on frame size
• Headset: FSA IS-2, 1-1/8″ top, 1.5″ bottom
• Brake rotor: SRAM CenterLine, 6-bolt, round-edge, 160mm
• Brakes: SRAM Level TL hydraulic disc
