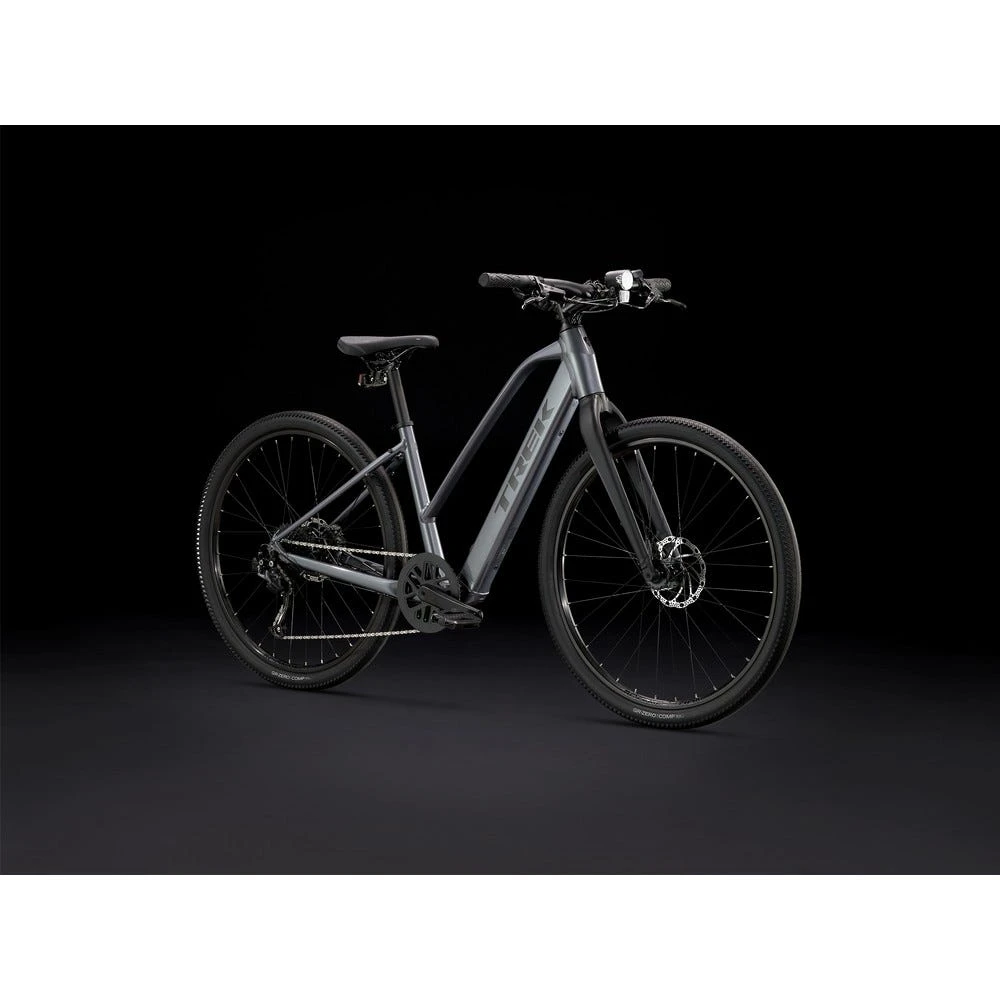

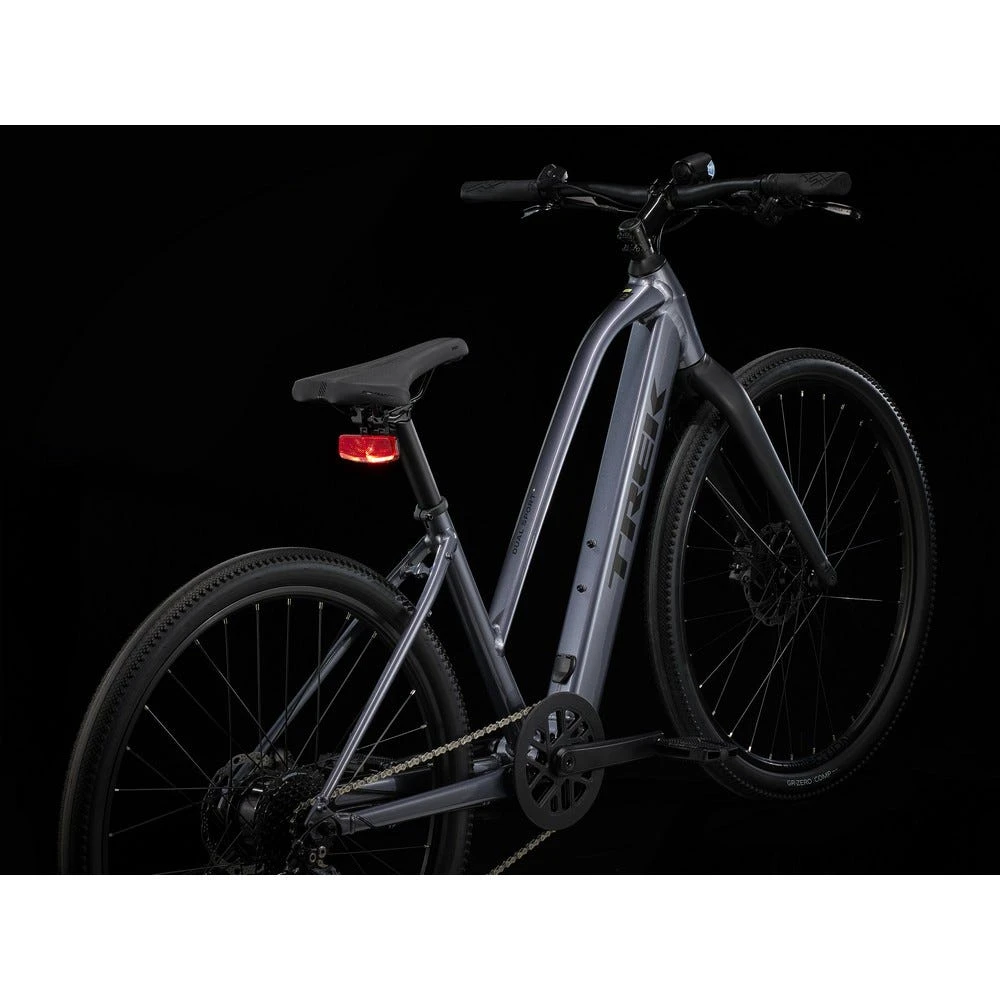

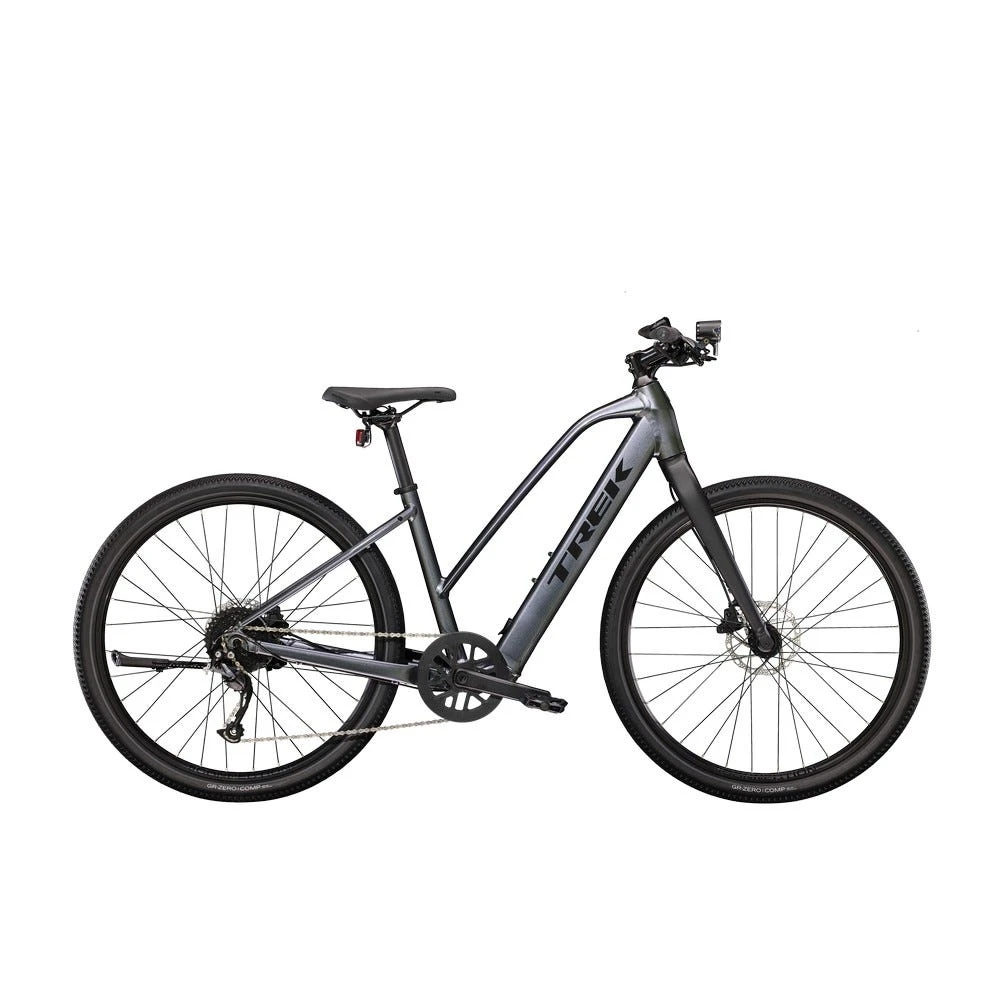

Trek Dual Sport+ 2 Stagger Electric Bike

Trek Dual Sport+ 2 Stagger Electric Bike

Specifications:

• Frame: Alpha Gold Aluminum, stagger, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5 mm OLD hub motor spacing
• Fork: DS+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5 mm bolt-on skewer
• Front hub: Formula DC-20, alloy, 6-bolt, 5 x 100 mm QR

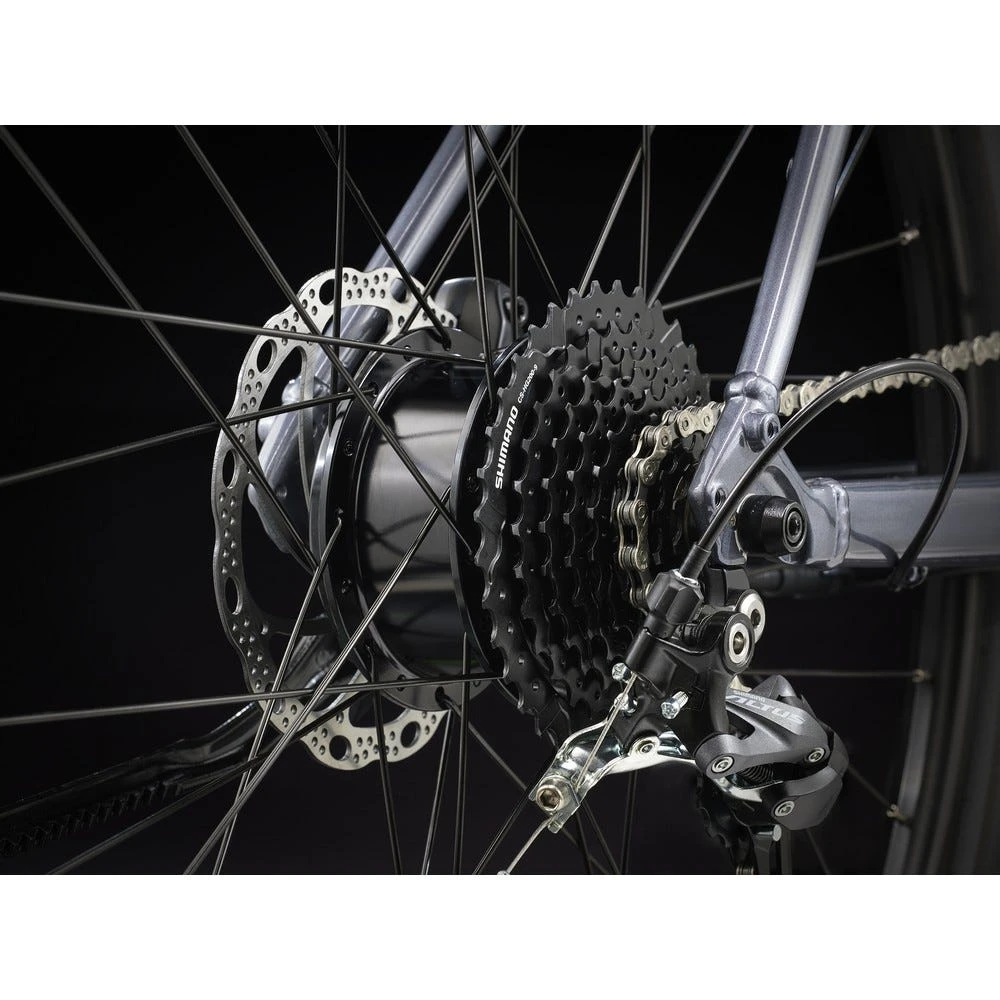

• Rear hub: HyDrive hub drive motor, 40Nm, 250W
• Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
• Tires: Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650 x 50c
• Max tire size: 27.5 x 2.0″ with or without fenders
• Shifter: Shimano Altus M2010, 9-speed
• Rear derailleur: Shimano Altus M2000, long cage
• Crank: ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length (175 mm for sizes L and XL)
• Bottom bracket: torque sensor, threaded, 122.5 mm spindle
• Cassette: Shimano HG200, 11-36, 9-speed
• Chain: KMC X9
• Pedals: Bontrager City pedals
• Max chainring size: 42T
• Saddle: Bontrager Sport
• Seatpost: Bontrager alloy, 31.6mm, 12mm offset

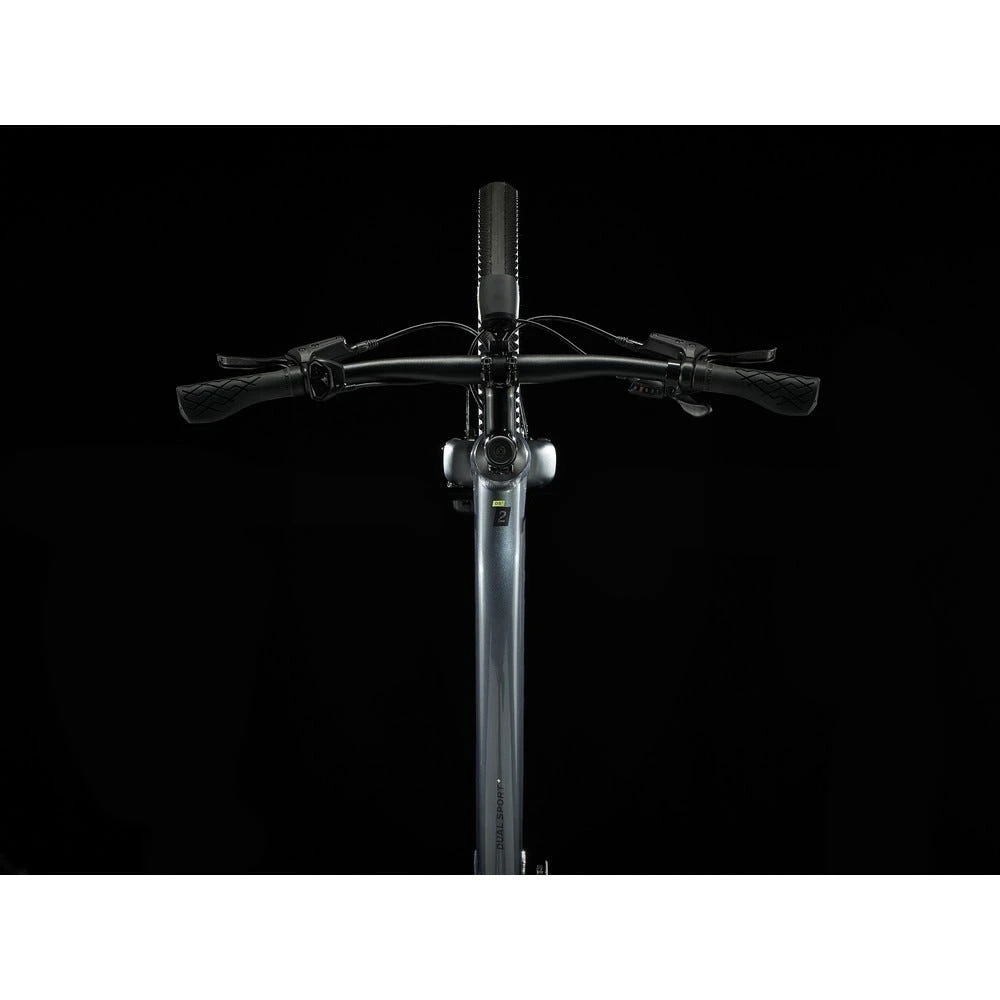

• Handlebar: Bontrager alloy, 31.8mm, 15mm rise, 660 to 690 mm width depending on bike size
• Grips: Bontrager XR Endurance Comp, lock-on
• Stem: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90 to 100 mm length depening on bike size
• Brakes: Shimano hydraulic disc, MT200 lever, UR300 caliper, Shimano RT26, 6-bolt, 160 mm
• Battery: 250Wh

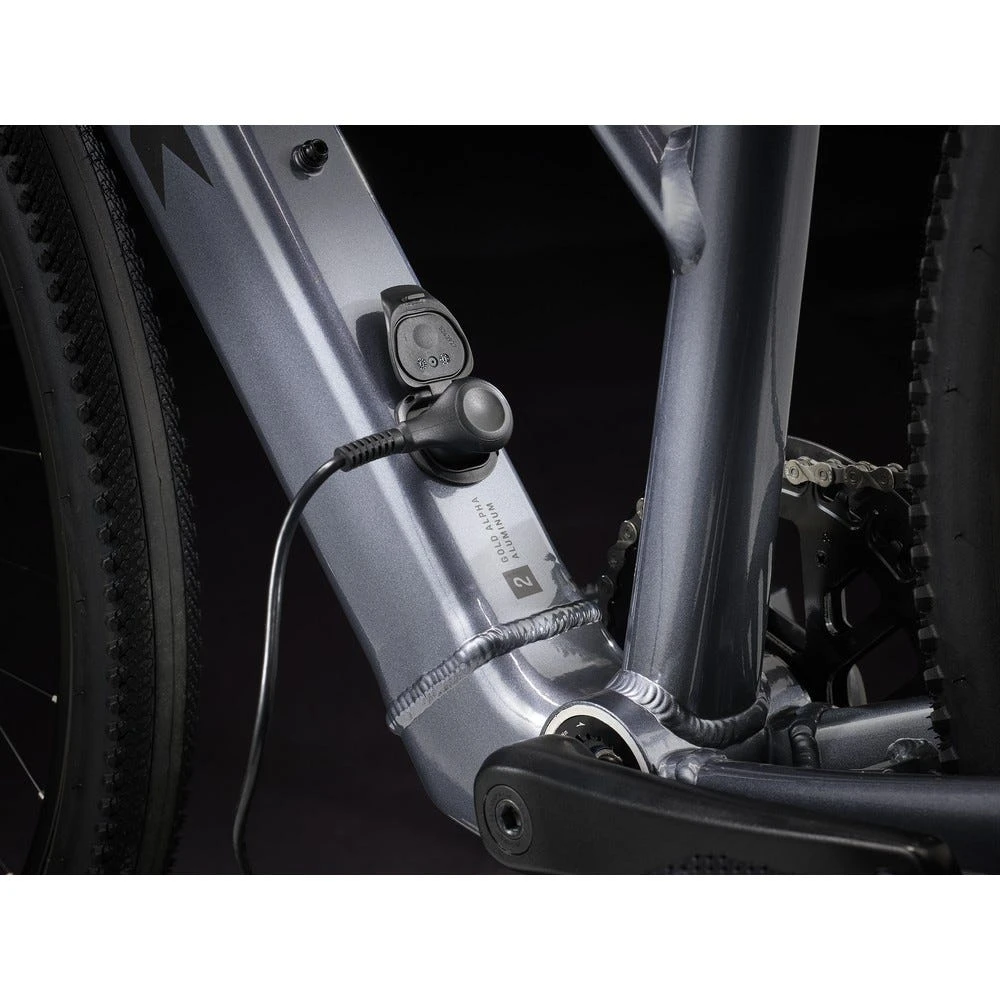

• Charger: 2A, 42V output, 100V-240V AC input

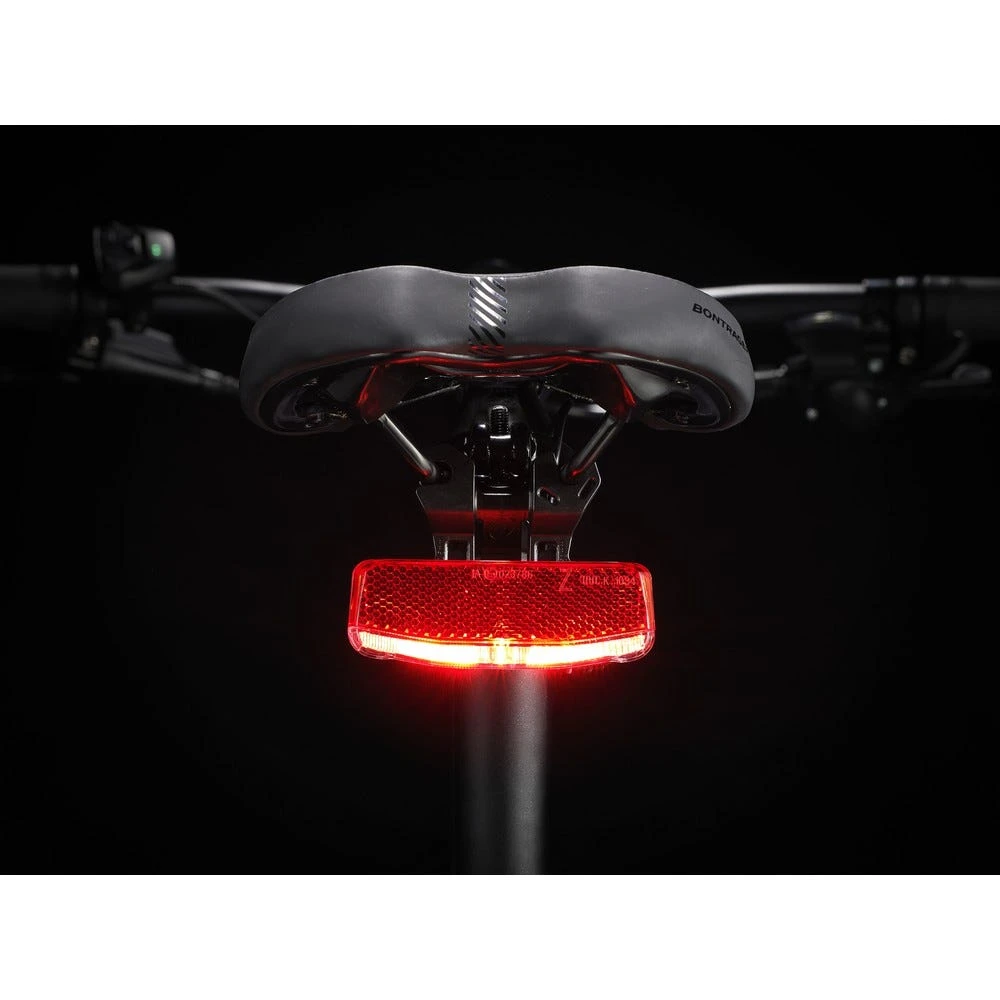

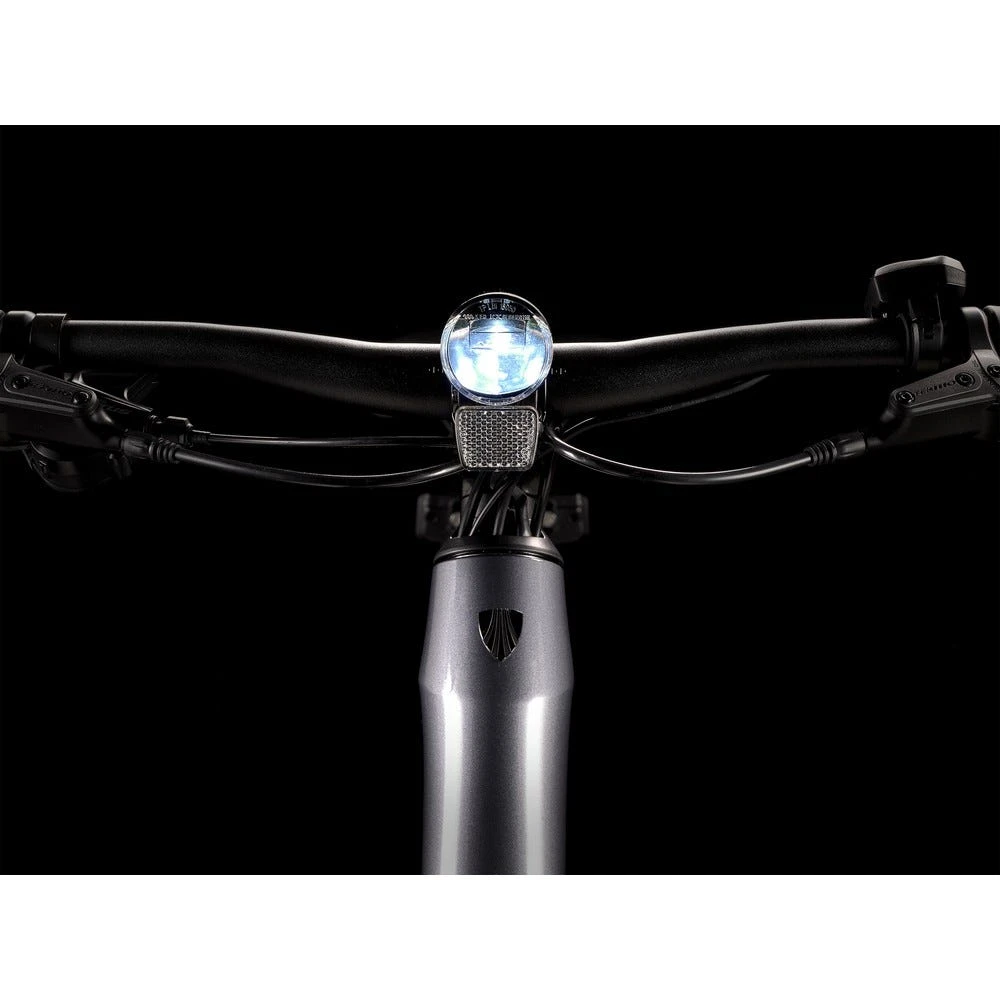

• Lights: Herrmans MR4, 120 lumen, 40 lux, LED headlight / Spanninga Solo, taillight

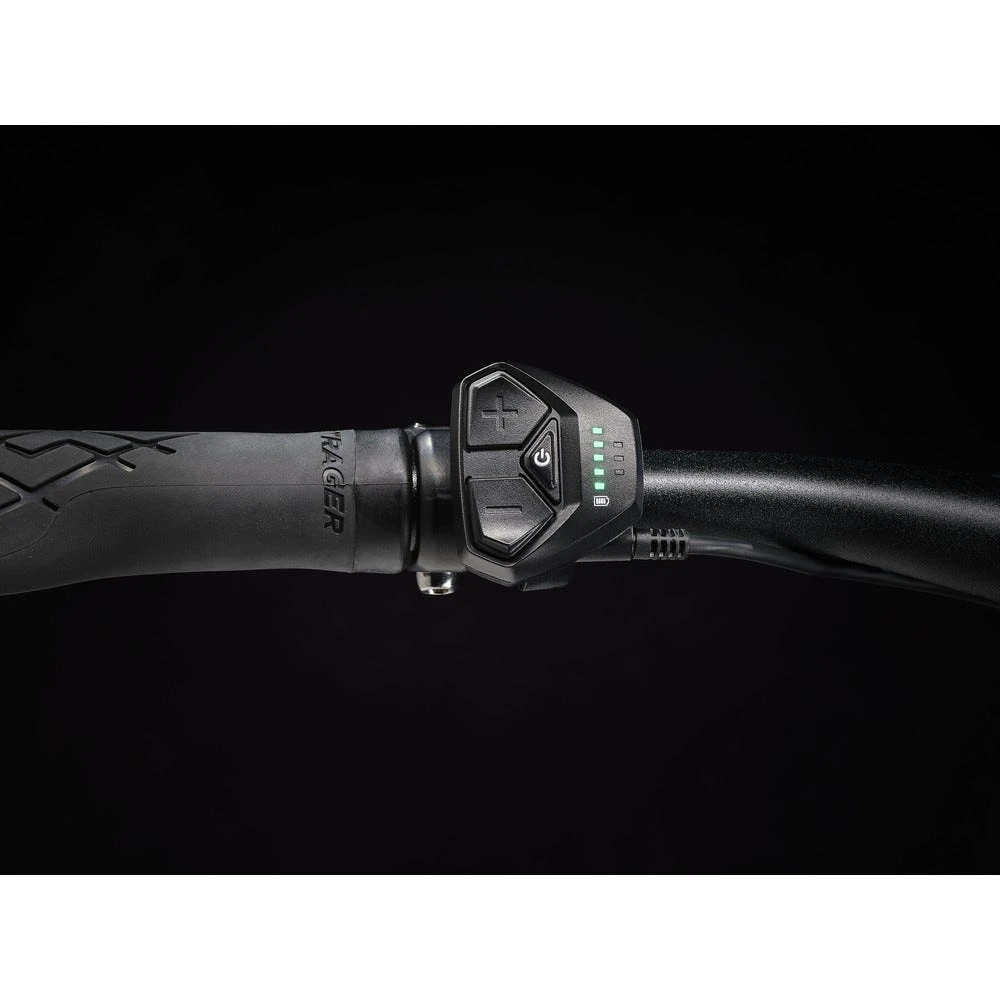

• Computer: Bluetooth display
• Kickstand: alloy, rear mount

Due to supply chain issues with certain bike suppliers, compatible components may be substituted at any time without notice.
