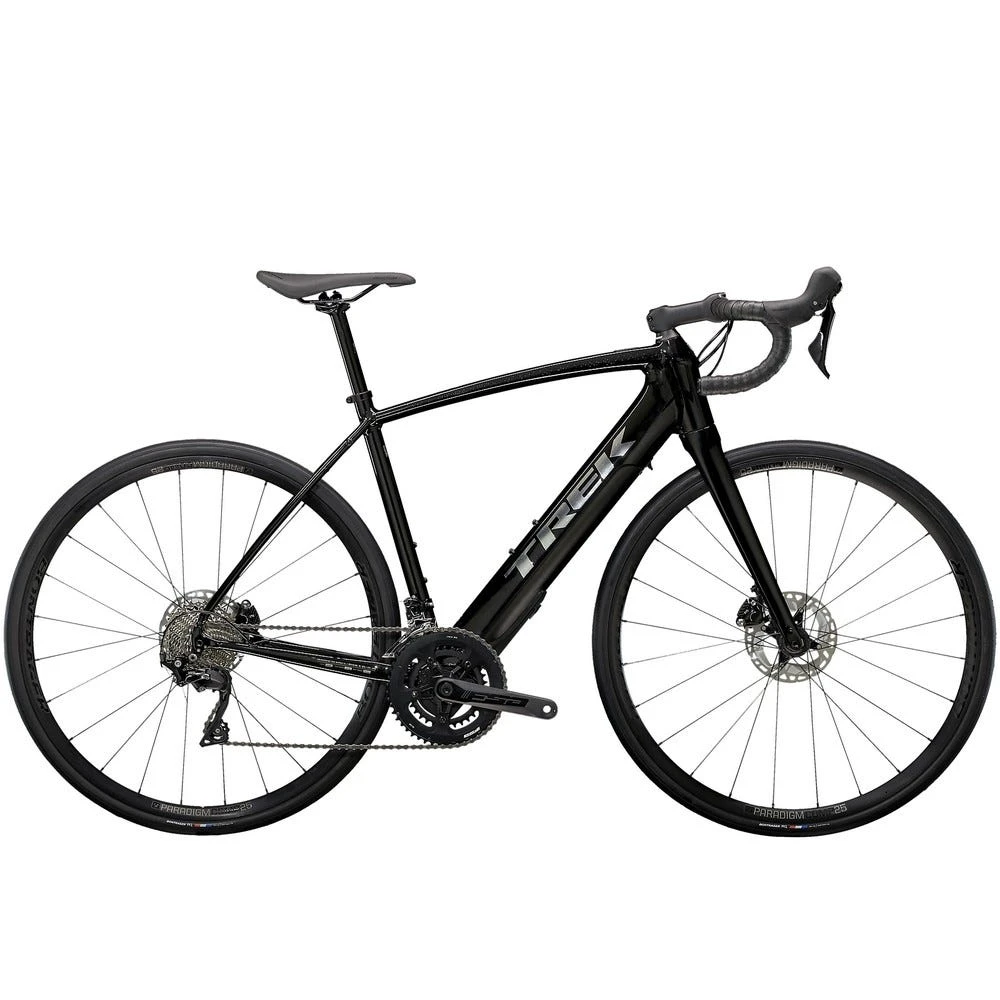

Trek Domane+ ALR 3 Disc Road E-Bike
Specifications:
- Frame: 300 Series Alpha Aluminum Fazua Evation integrated drive system tapered head tube internal routing flat mount disc fender mounts 148x12mm thru axle
- Fork: Domane+ carbon tapered alloy steerer internal brake routing mudguard mounts flat-mount disc 100x12mm thru axle
- Front wheel: Bontrager Paradigm Comp 25 Tubeless Ready 25mm rim width 100x12mm thru axle
- Rear hub: Bontrager Paradigm Comp 25 Tubeless Ready 25mm rim width Shimano 11-speed freehub 142x12mm thru axle
- Tires: Bontrager R1 Hard-Case Lite wire bead 60tpi 700x32c
- Shifters: Shimano 105 R7020 11-speed (Shimano 105 R7025 short-reach lever for sizess 49 and 52)

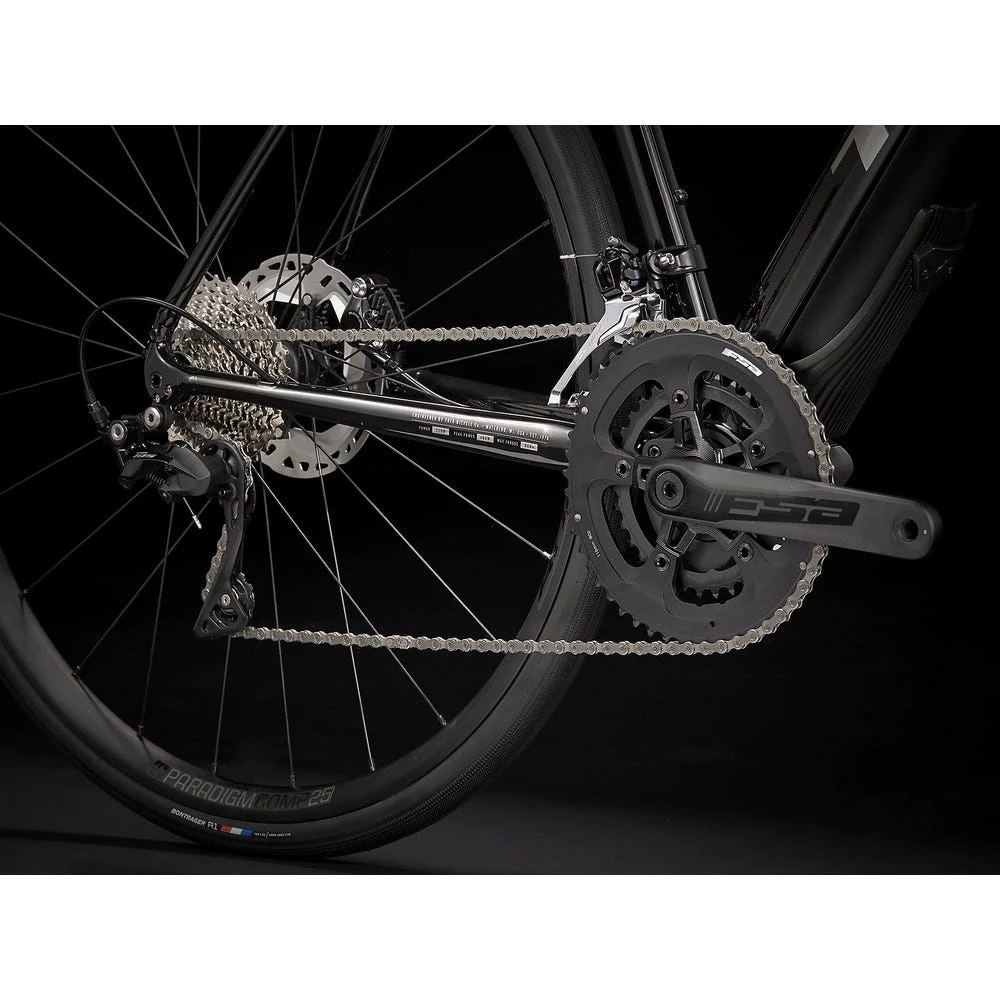

- Rear derailleur: Shimano 105 R7000 long cage 34t max cog
- Front derailleur: Shimano 105 R7000 braze-on
- Crank: FSA alloy for Fazua 50-34 170mm length (sizes 49 52) 172.5mm (sizes 54 56) 175mm (sizes 58 61)
- Cassette: Shimano 105 HG700-11 11-34 11-speed
- Chain: Shimano 105 HG601 11-speed
- Saddle: Bontrager Arvada Comp steel rails
- Seatpost: Bontrager Comp 6061 alloy 27.2mm 8mm offset 330mm length
- Handlebar: Bontrager Comp VR-C alloy 31.8mm
- Handlebar tape: Bontrager Supertack Perf tape
- Stem: Bontrager Elite 31.8 mm Blendr-compatible 7-degree rise
- Headset: FSA integrated sealed cartridge bearing 1-1/8” top 1.5” bottom

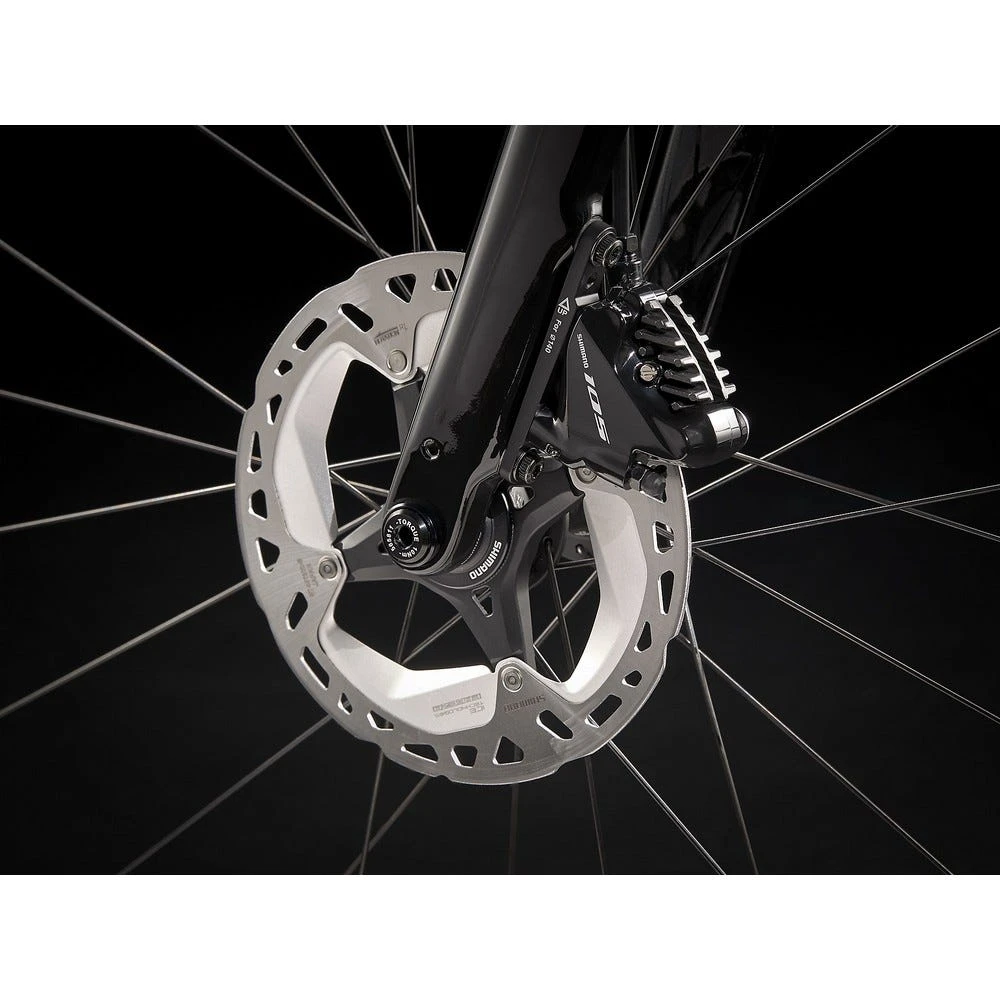

- Brakes: Shimano 105 hydraulic disc flat mount Shimano EM810 Centerlock 160mm
- Motor: Fazua Evation Drive Pack 25 km/h max. assis
- Battery: Fazua Evation 1.0 250 Wh
- Charger: Fazua Evation
- Fazua Evation touch remote
Due to supply chain issues with certain bike suppliers, compatible components may be substituted at any time without notice.
