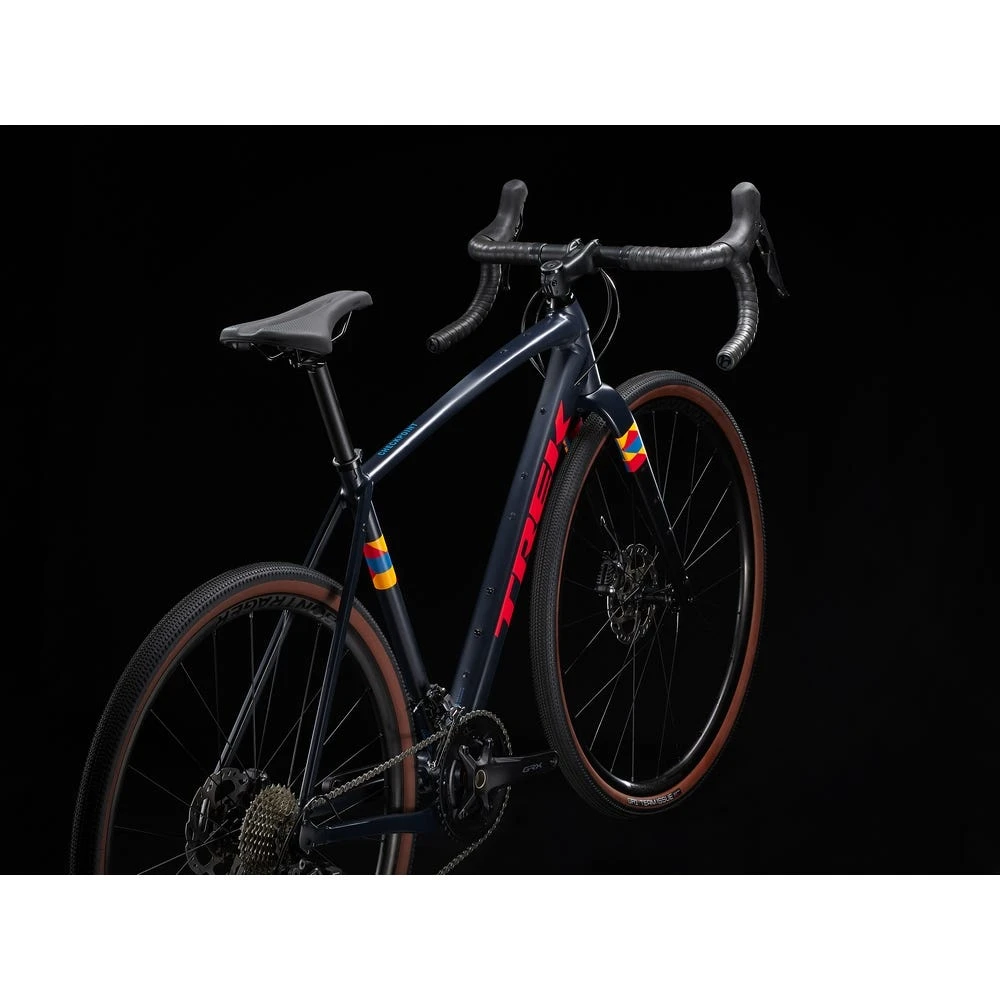

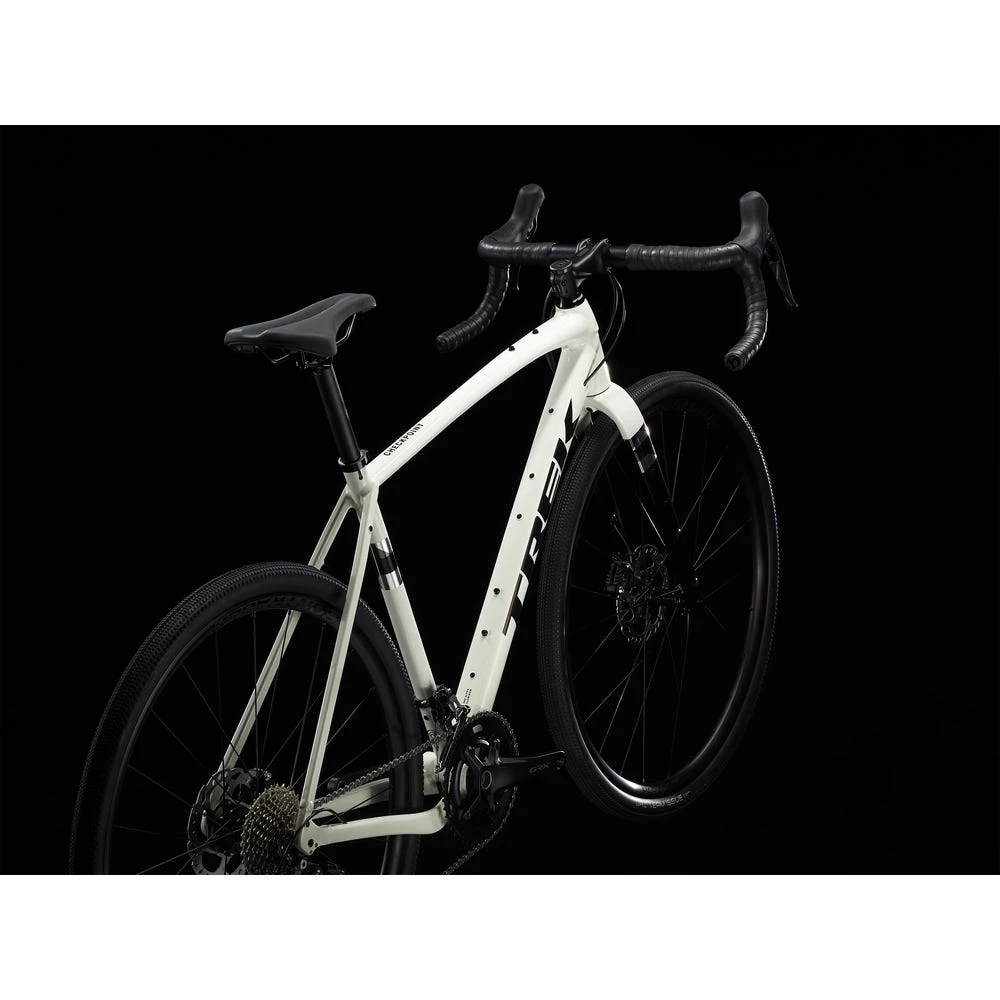

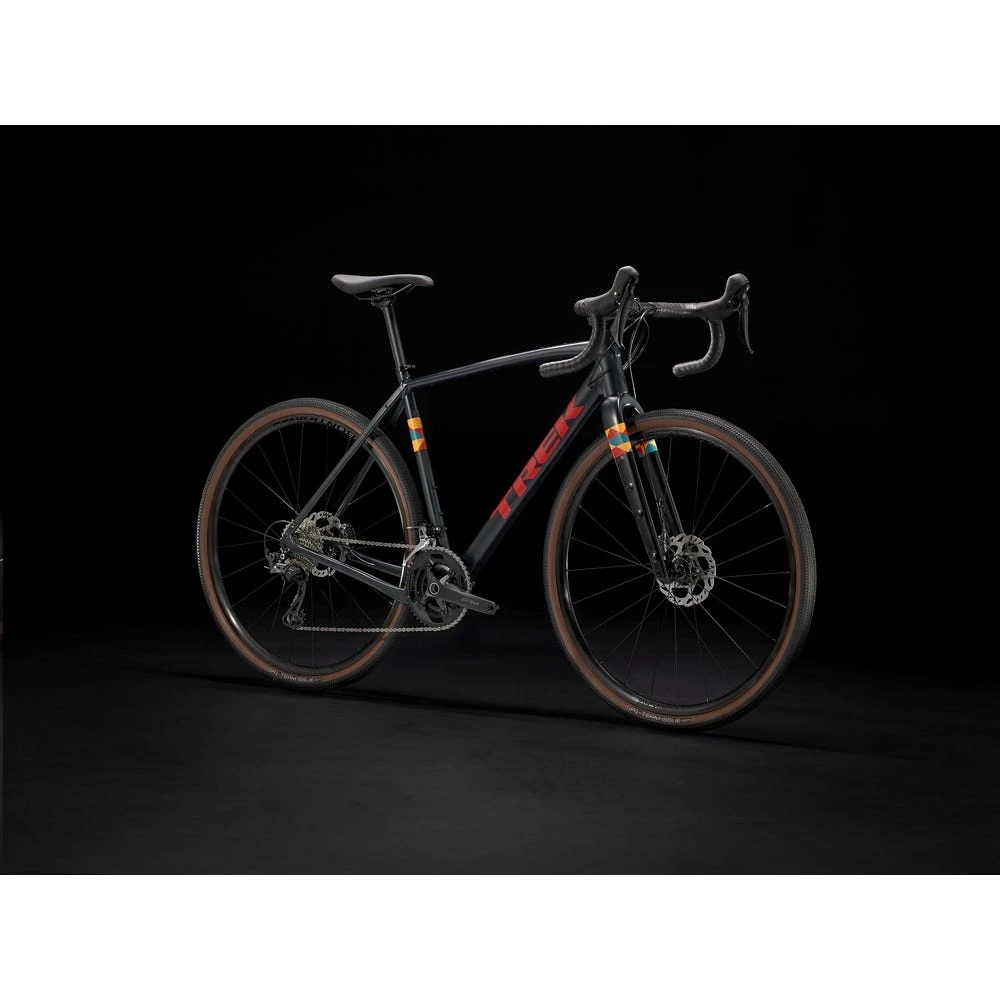

Trek Checkpoint ALR 5 Gravel Bike
Specifications:

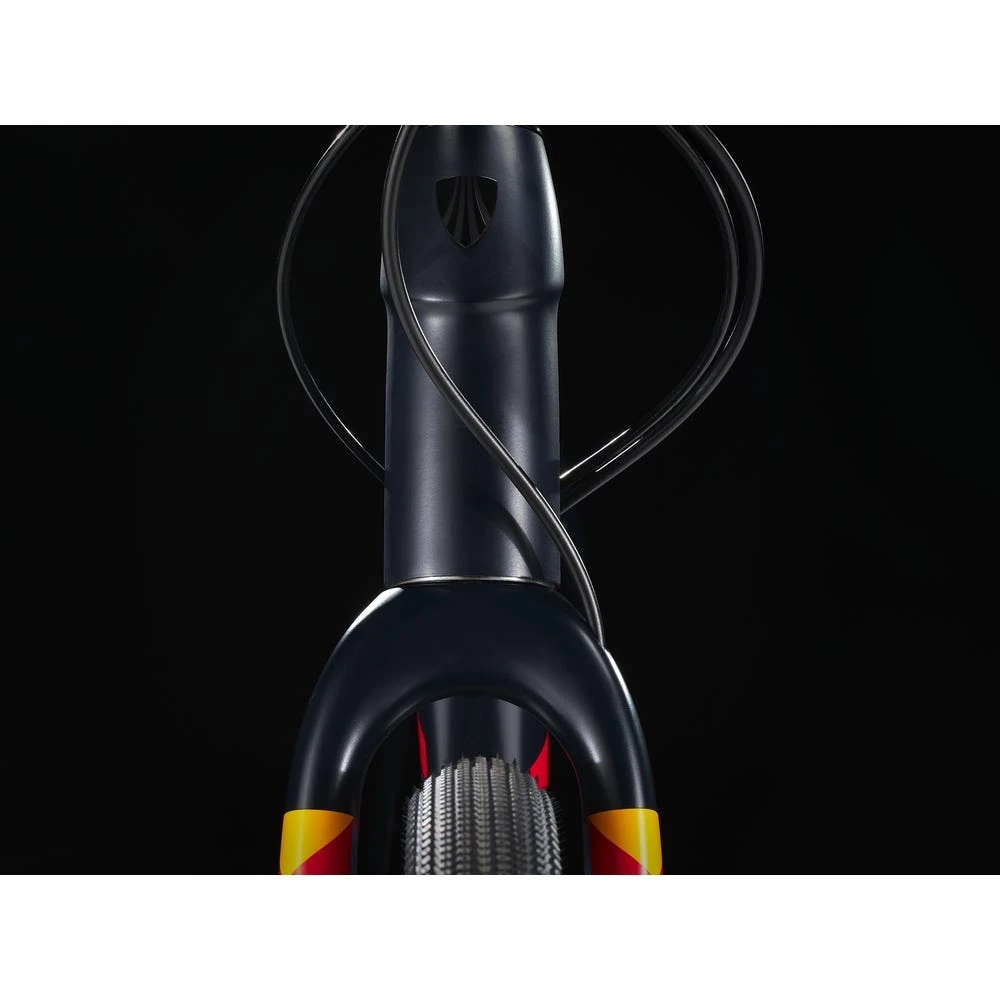

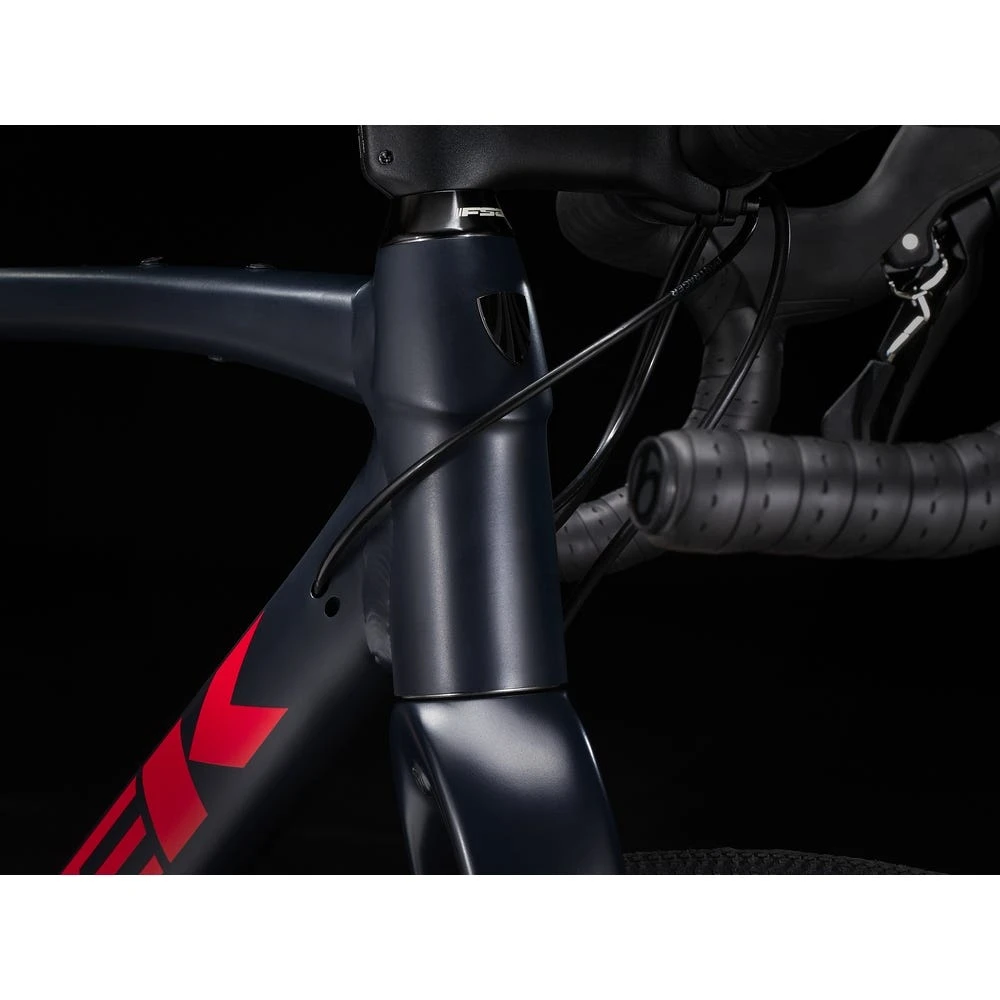

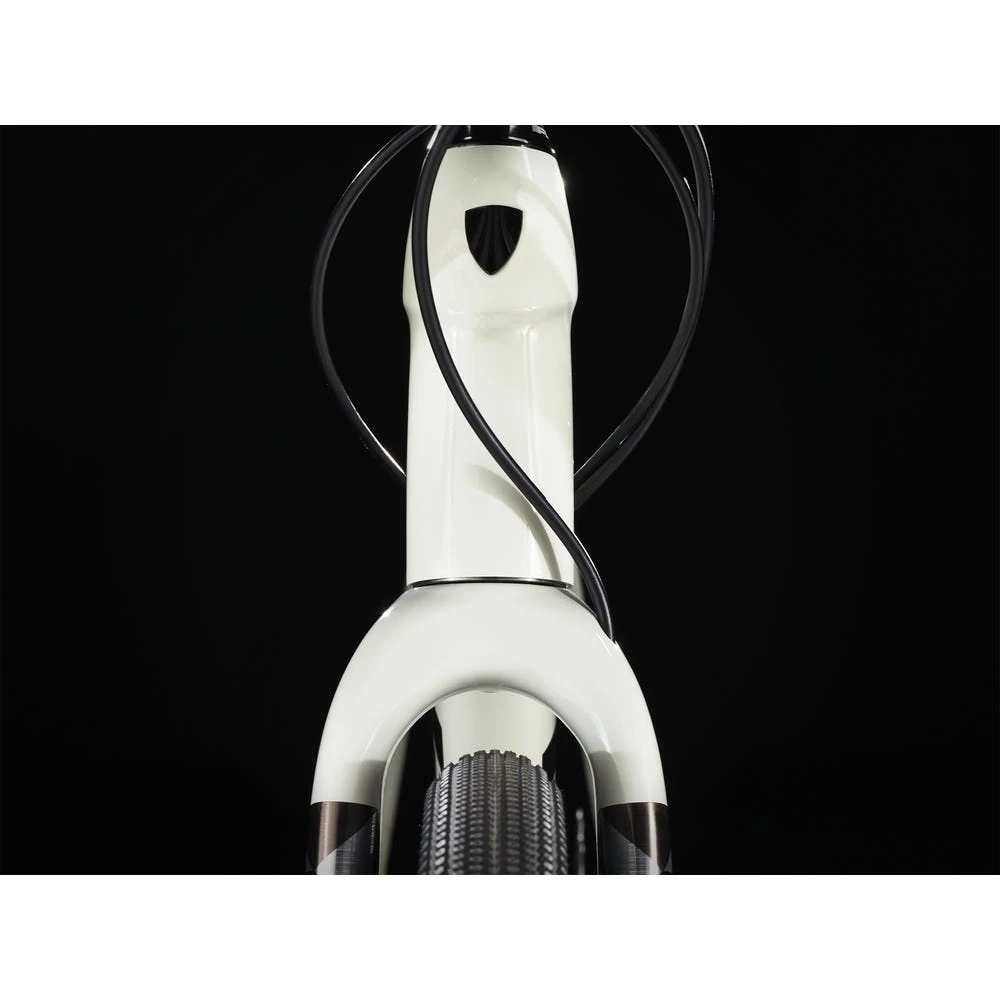

- 300 Series Alpha Aluminum tapered head tube Internal cable routing 3S chain keeper T47 BB rack and mudguard mounts integrated frame bag mounts flat-mount disc 142×12 mm thru-axle
- Front hub: Bontrager alloy sealed bearing CenterLock disc 100×12 mm thru axle
- Rear hub: Bontrager alloy sealed bearing CenterLock disc Shimano 11-speed freehub 142×12 mm thru axle
- Rims: Bontrager Paradigm SL Tubeless Ready 24-hole 24mm Presta valve
- Tires: Bontrager GR1 Team Issue Tubeless Ready Inner Strength casing aramid bead 120 tpi 700×40 max tire size 700x45c / 650×2.1
- Shifter: Shimano GRX RX600 11-speed
- Front derailleur: Shimano GRX RX810 braze-on
- Rear derailleur: Shimano GRX RX820 long cage 34T max cog

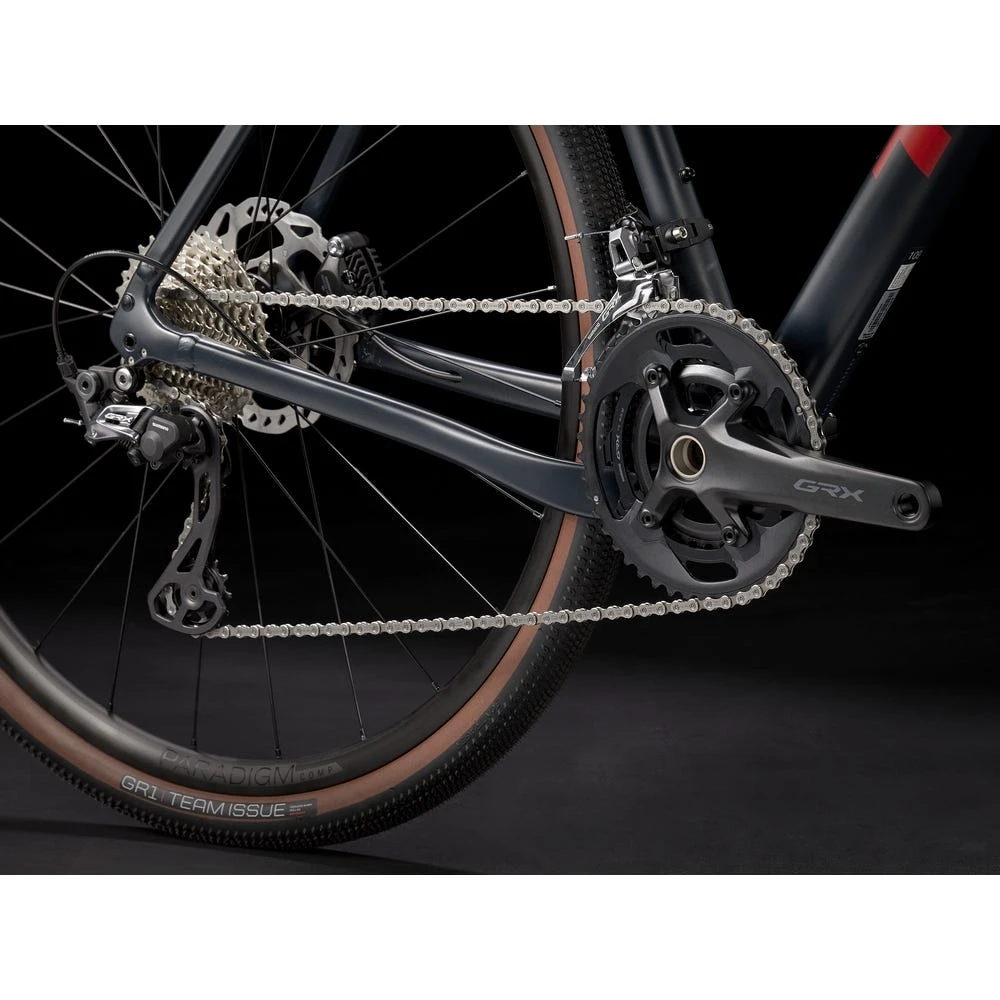

- Crankset: Shimano GRX RX600 46/30
- Bottom bracket: Praxis T47 threaded internal bearings
- Cassette: Shimano 105 HG700-22 22-34 11-speed
- Chain: Shimano HG601
- Saddle: Bontrager P3 Verse Comp steel rails
- Seatpost: Bontrager alloy 27.2mm 8mm offset 330mm length

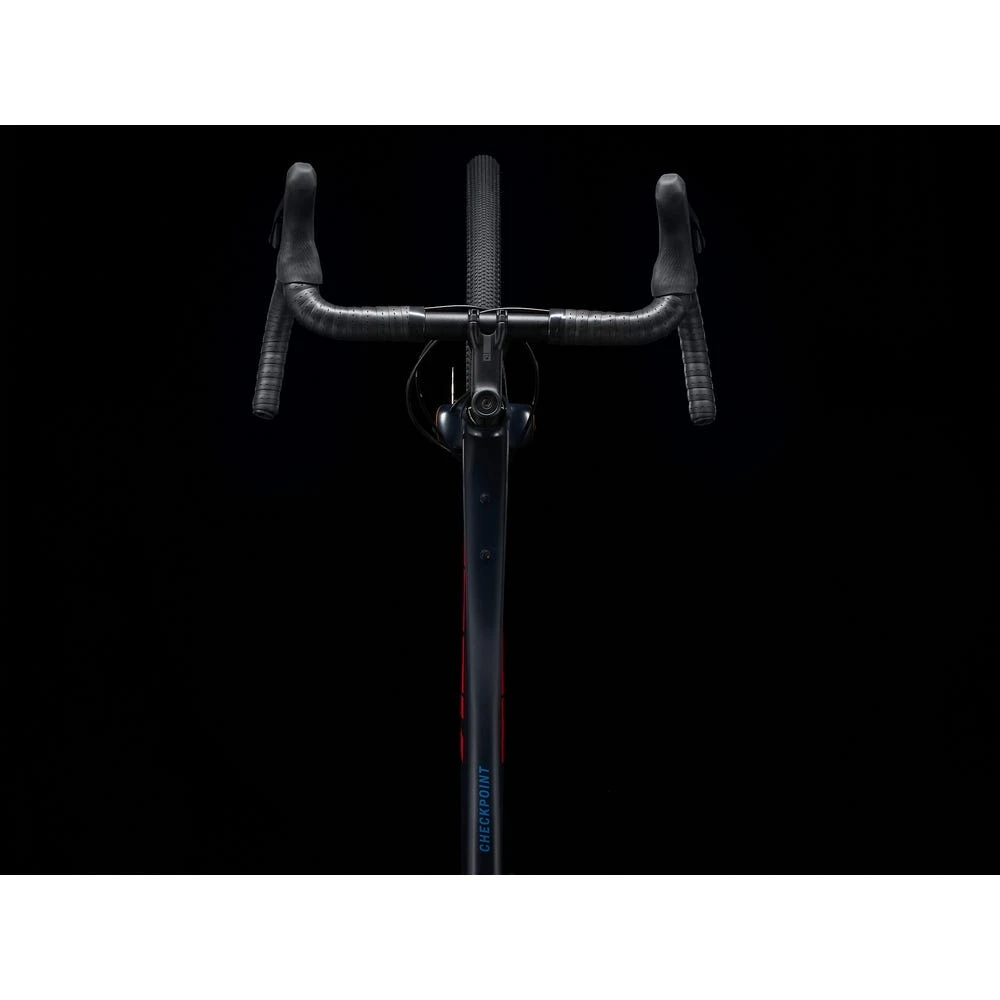

- Handlebar: Bontrager Elite Gravel
- Handlebar tape: Bontrager Supertack Perf tape
- Stem: Bontrager Elite 31.8 mm Blendr-compatible 7-degree
- Brake rotors: Shimano SM-R70 CenterLock 160 mm
Due to supply chain issues with certain bike suppliers, compatible components may be substituted at any time without notice.
