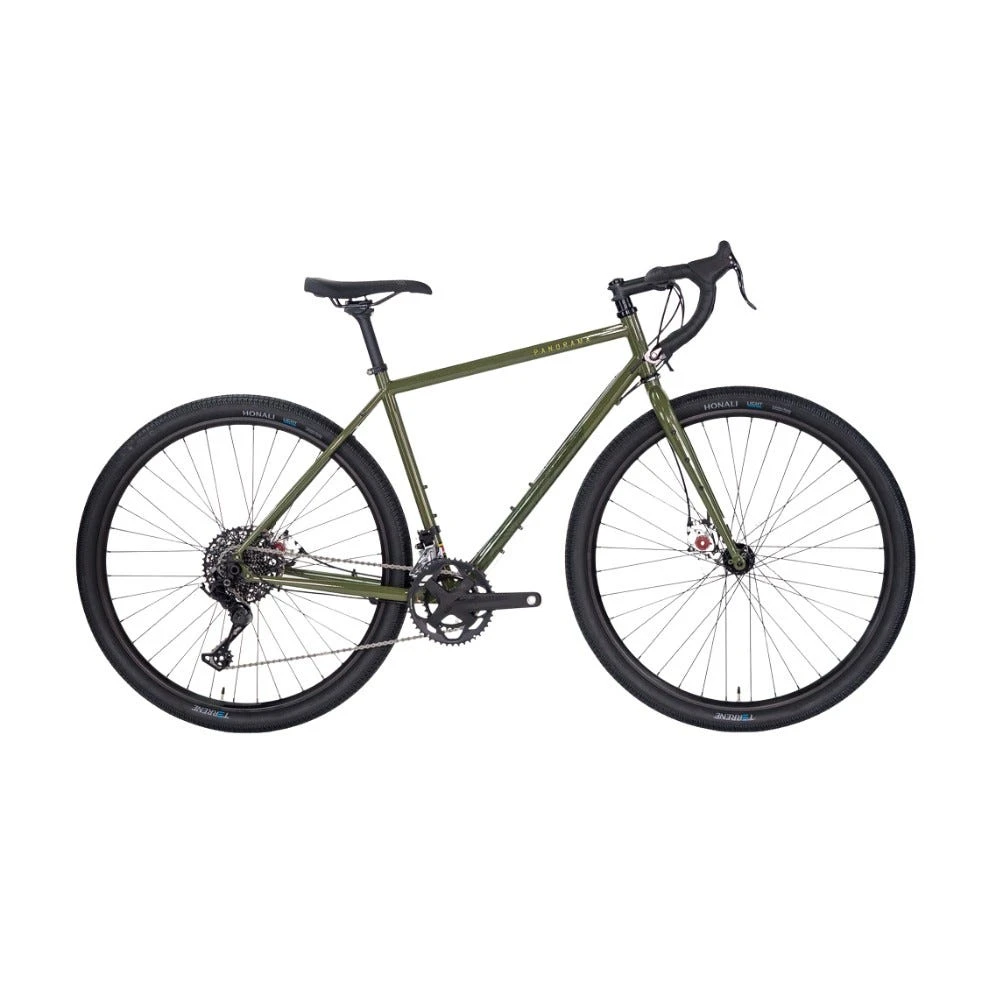

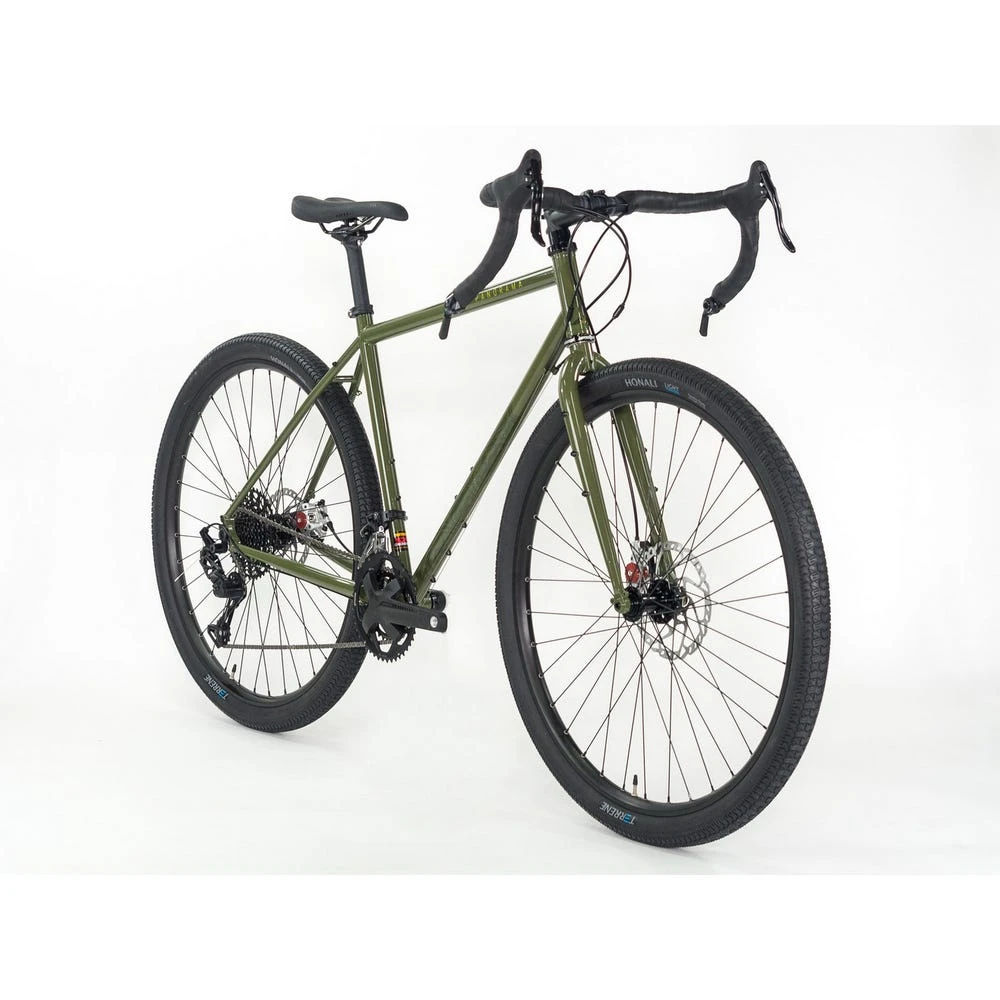

Panorama Forillon Touring Bike
Specifications:
- Frame: Reynolds 525, IS Mount brake standard, rear rack mounts, fender mounts, triple water bottle mounts under the downtube, double water bottle mounts at downtube and seat tube, integrated KSA-18 kickstand plate, extra spokes carrier, electrodeposition surface treatment (corrosion protection), 12mmx142mm rear spacing, BSA 68mm bottom bracket, 1-1/8¨ head tube, 29.8mm seat post clamp, 27.2mm seat post, 28.6mm front derailleur ring, max tire clearance without fender: 700x50mm, max tire clearance with fender: 700x42mm
- Fork: custom 4130 Cr-mo, IS Mount brake standard, pannier rack mounts, fender mounts, triple cargo cage mounts, 12mmx100mm spacing, steer tube: 1-1/8¨, max tire clearance without fender: 700x50mm, max tire clearance with, fender: 700x42mm
- Rims: DB-30, 36 holes, double wall, reinforcing eyelets
- Hubs: Novatec D791SB/D792SB
- Tires: WTB Byway 700×44 120 TPI Dual DNA GG2
- Brakes: Avid BB7R
- Rotors: SRAM centerline 180mm front / 160mm rear
- Crank: FSA Omega 2x Megaexo, 46/30T
- Bottom bracket: FSA Megaexo BB-4000
- Cassette: Microshift XLE 11-42T
- Chain: Shimano HG 601
- Rear derailleur: Microshift XLE 11s
- Front derailleur: Microshift XLE
- Brake levers: SRAM BL500
- Shifters: Microshift bar end 11-speed
- Handlebar: Ritchey Comp Ergo Max, 31.8mm x 440mm
- Headset: EC34/EC34
- Stem: Promax DA-281, 31.8mm, 6 deg
- Headset: FSA Orbit UF, 1-1/8 EC34
- Seatpost: Kalloy SP-3D2
- Saddle: Panorama spec, 265mm x 140mm
